Lexus IS300 3UZ Swap Part 6: Flex Fuel & First Start

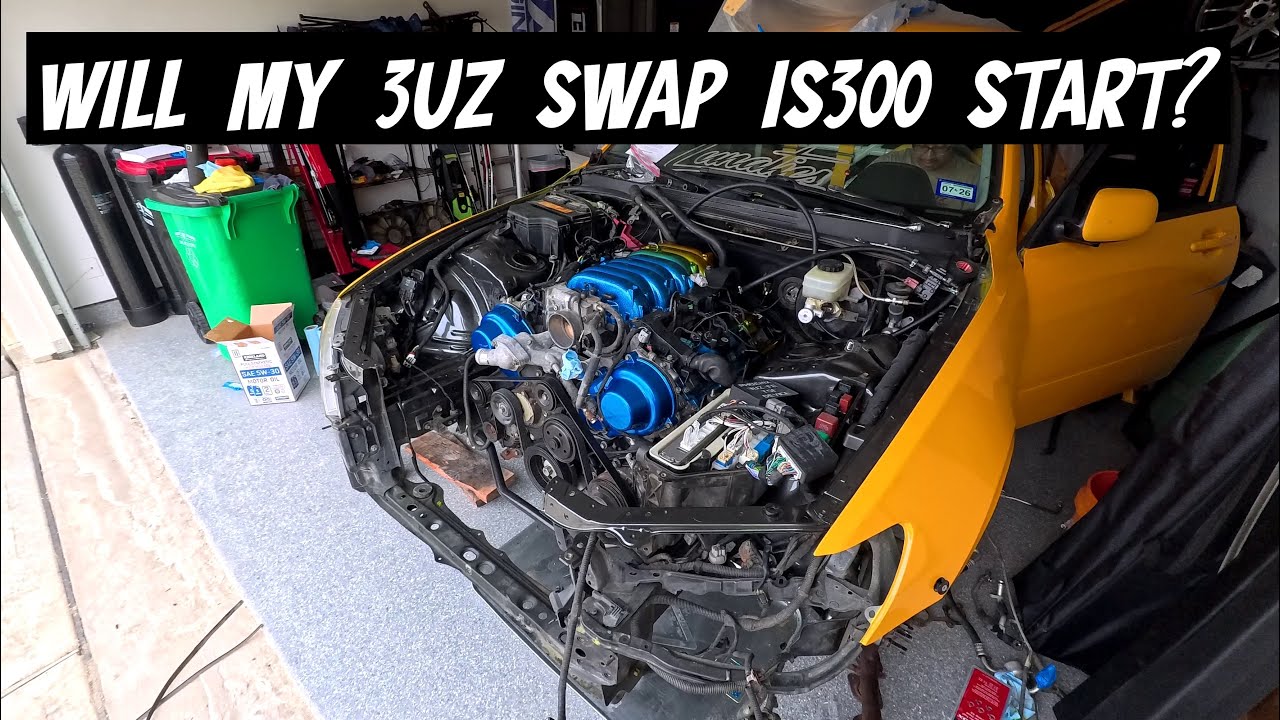

Our 3UZ-swapped Lexus IS300 finally runs!

After installing the 4.3-liter 3UZ-FE V8 and TL70 6-speed manual transmission in Part 5, we're moving on to the supporting systems needed to turn this Lexus IS300 engine swap into a running and driving drift car.

In Part 6 of our Lexus IS300 3UZ swap series, we're installing an eFlexFuel E85 flex fuel system, wiring all eight fuel injectors, installing the ethanol content sensor, finishing the fuel lines, bleeding the TL70 clutch, checking transmission clearance, removing the AC system, and attempting the first startup.

By the end of this episode, we reach one of the biggest milestones of the build: our 3UZ-FE V8 starts and idles inside the Lexus IS300.

Building your own IS300? Browse our Lexus IS300 performance parts, IS300 engine swap parts, and eFlexFuel systems at Lunatics Co.

Watch Our Lexus IS300 3UZ Swap Build Series

This is Part 6 of our Lexus IS300 3UZ-FE V8 swap series. Follow the previous episodes to see how we prepared the engine, installed the transmission, and fitted the drivetrain into the chassis.

In Part 5, we paired the 3UZ-FE with a TL70 6-speed manual transmission, installed the clutch and flywheel, used the Xcessive Manufacturing adapter setup, dropped the drivetrain into the IS300, and installed an oil pan baffle for drifting.

Can You Install Flex Fuel on a 3UZ-FE?

Yes. A 3UZ-FE can be configured to run flex fuel when the injectors, fuel pump, fuel lines, engine management, and other components support ethanol and the required fuel volume.

For our 3UZ-swapped IS300, we're installing an eFlexFuel system. It uses an ethanol content sensor and controller to monitor fuel composition and make fueling adjustments.

One of the biggest advantages of this system is its plug-in injector wiring. Rather than cutting into the factory injector wiring, we can use inline jumper harnesses.

Lunatics Co carries the eFlexFuel E85 Flex Fuel Kit for Lexus IS300 and the eFlexFuel PRO Kit for Lexus IS300.

Important Fitment Note: Our IS300 uses a swapped 3UZ-FE V8 rather than the factory 2JZ-GE. This is a custom application requiring additional injector connections and compatibility verification. The linked IS300 kits should not be assumed to fit a 3UZ swap without modification.

What Does a Flex Fuel System Do?

A flex fuel system allows an engine to operate with different concentrations of gasoline and ethanol rather than requiring one fixed fuel blend.

The ethanol content sensor measures the concentration of ethanol in the fuel. The system then uses that information to compensate for changes in fueling requirements.

This is useful when running E85 because the actual ethanol concentration can vary between fuel stations and throughout the year.

Browse our eFlexFuel E85 conversion systems for supported Lexus applications.

Why We're Using eFlexFuel PRO on Our Modified IS300

Our Lexus IS300 isn't exactly stock anymore. It has a 3UZ-FE V8, a manual transmission conversion, custom fuel system components, and a chassis being built specifically for drifting and track use.

The eFlexFuel PRO system offers additional monitoring and tuning capabilities for modified applications.

Features include:

  • Automatic ethanol content compensation
  • Wideband AFR integration
  • Additional analog sensor inputs
  • Smartphone monitoring
  • Injector duty cycle monitoring
  • Fuel temperature monitoring
  • Advanced fuel tuning through eFlexTuner
  • Data logging

Installing the eFlexFuel Harness on the 3UZ V8

We started by assembling the injector harness before installing it on the engine.

Because the 3UZ-FE is a V8, we need connections for eight fuel injectors. The flex fuel harness includes additional connections that allow us to expand the wiring for the extra cylinders.

We plugged the additional leads into the main harness and preassembled as much as possible before bringing everything over to the engine.

Identifying the 3UZ Injector Power Wires

Before finishing the injector jumper harnesses, we needed to identify the power side of each injector connector.

We temporarily connected the harnesses to the injectors and marked the corresponding side of each connector. Once all eight were identified, we removed the connectors and completed the harness assembly.

For our installation, the red wire from the flex fuel harness needed to correspond with the injector power side we had marked.

Correct wire identification is important. Always verify injector pinout and polarity against the applicable wiring documentation before making connections.

Connecting All Eight 3UZ Injectors

With the harness assembled, we installed the jumper connectors between the engine harness and each injector.

Each injector circuit needs to stay paired correctly. Connecting one side of a jumper to the wrong cylinder can create problems.

We worked our way around the engine until all eight injector connections were complete.

The plug-in design made this process much cleaner than permanently cutting and splicing the original injector harness.

Cleaning Up the Flex Fuel Wiring

Once the injector connections were complete, we started routing the flex fuel wiring alongside the existing engine harness.

We routed the wiring underneath and around the engine wherever possible to keep the installation organized.

Both sides of the injector harness eventually merge near the flex fuel controller. We also needed to route wiring for the ethanol content sensor and temperature sensing.

We intentionally left some of the wiring temporarily positioned until we could verify that the engine started and the system worked correctly.

After testing, we can return to finish securing and protecting the harness.

Grounding the Flex Fuel System

The flex fuel controller requires a reliable electrical ground.

For our initial installation, we grounded the controller directly to the engine.

It's important to use a suitable grounding location with a secure connection and good electrical contact.

Installing the Flex Fuel Ethanol Content Sensor

Next, we moved on to the fuel system.

The ethanol content sensor measures the concentration of ethanol in the fuel and sends that information to the flex fuel controller.

For our setup, we positioned the sensor near the fuel line in the engine bay.

We used a 90-degree fitting on one side and a straight fitting on the other to follow the direction of our fuel line routing.

This arrangement helps minimize unnecessary bends while keeping the sensor accessible for inspection and service.

Connecting the Ethanol Sensor to the 3UZ Fuel System

We had already simplified the 3UZ fuel system earlier in the build, making it easier to integrate the ethanol content sensor.

We installed the sensor inline with the fuel supply and routed the fuel hose toward the 3UZ fuel rail.

We used fuel-system-appropriate fittings and clamps for the connections.

Whenever you're working with gasoline or ethanol-based fuels, it's important to verify that every hose, fitting, seal, and clamp is compatible with the fuel type and operating pressure.

Before starting the engine, all connections should be inspected carefully for leaks.

Can You Run E85 in a 3UZ-FE?

Yes, the Toyota 3UZ-FE can be configured to operate on ethanol-based fuels, including E85, when the supporting fuel system and engine management are properly configured.

However, converting a 3UZ to E85 involves more than simply filling the tank with ethanol fuel.

The fuel pump, injectors, fuel lines, seals, engine management, and other components must support the required fuel volume and ethanol content.

Because E85 requires a different amount of fuel than gasoline, correct fuel delivery and calibration are essential.

Finishing the 3UZ Drive-By-Wire Setup

Before attempting the first startup, we also needed to continue working on the electronic throttle system.

The 3UZ-FE uses an electronic throttle configuration, so the factory IS300 throttle setup doesn't simply connect to the swapped engine.

We're adapting the car around the 3UZ drive-by-wire system.

This is one of the reasons engine swaps involve much more than physically installing an engine. Fuel, wiring, throttle control, cooling, transmission, clutch, exhaust, and other systems all need to work together.

First Start of Our 3UZ-Swapped Lexus IS300

After connecting the flex fuel system, checking the remaining connections, and adding engine oil, it was finally time to attempt the first startup.

And the 3UZ started!

Hearing the 4.3-liter V8 fire up inside the Lexus IS300 was a huge milestone for this project.

The first startup wasn't perfect. The engine still needed additional work before it would consistently stay running and idle correctly.

But after everything involved in the swap, hearing the engine run was a major step forward.

Bleeding the TL70 6-Speed Manual Clutch

With the engine running, we continued working through the remaining items needed to finish the drivetrain installation.

We're using a TL70 6-speed manual transmission from the Toyota 86, Scion FR-S, and Subaru BRZ platform behind our 3UZ-FE.

If you missed the transmission installation, watch Part 5 of our 3UZ IS300 swap series.

Our clutch hydraulic setup uses AN lines and banjo fittings to adapt the IS300 clutch system to the TL70 transmission.

The clutch bleeder remains accessible with the drivetrain installed, although the available space is limited.

We were able to bleed the clutch and continue checking the transmission installation.

For related components, browse our Lexus IS300 manual swap and drivetrain parts.

Checking TL70 Shifter Clearance in the IS300

With the transmission installed, we could finally see where the TL70 shifter landed inside the IS300.

Transmission packaging was one of the main reasons we wanted to experiment with the TL70.

We moved the transmission through the gears and checked clearance around the shifter opening.

Even in first gear, we still had room.

That means we shouldn't need to completely redesign the center tunnel just to accommodate the shifter.

Why We're Deleting AC From Our 3UZ IS300

We've also decided to remove the factory air conditioning system from this build.

Not every 3UZ-swapped IS300 needs to delete AC, but it makes sense for our drift-focused project.

The car is being built primarily for track and drifting use, with solid mounts and other modifications that already prioritize performance over comfort.

Removing the AC system also creates additional room in the engine bay, particularly around the driver's side exhaust manifold.

That extra space should make future maintenance and repairs easier.

3UZ Belt Routing With AC and Power Steering Removed

We're also simplifying the engine accessory drive.

The factory hydraulic power steering system is being removed because we plan to convert the car to electric power steering later in the build.

Combined with the AC delete, this changes the accessory belt routing.

We installed the belt configuration we're using without the original hydraulic power steering pump and continued checking alignment before operating the engine.

Getting the 3UZ-FE to Idle

After working through the remaining connections and intake setup, we attempted another startup.

This time, the engine settled into a steady idle.

For the first time, our 3UZ-FE V8 wasn't sitting on an engine stand or hanging from an engine hoist. It was installed in the Lexus IS300 and running.

After all the fabrication, wiring, drivetrain work, and troubleshooting, this was one of the most rewarding moments of the project so far.

Lexus IS300 3UZ Swap and Flex Fuel FAQ

Can you install flex fuel on a 3UZ-swapped Lexus IS300?

Yes. A 3UZ-swapped Lexus IS300 can be configured with a flex fuel system, but the installation is a custom application. The system must support the eight-cylinder injector configuration and the vehicle's specific fuel system.

Can a Toyota 3UZ-FE run on E85?

Yes, when the injectors, fuel pump, lines, seals, engine management, and other supporting components are compatible with ethanol and the increased fuel requirements.

Does eFlexFuel require cutting the injector wires?

Our installation did not require cutting the injector wires. We used inline jumper harnesses between the engine harness and fuel injectors.

What does an ethanol content sensor do?

An ethanol content sensor measures the ethanol concentration in the fuel. This information allows the flex fuel system to adjust fueling for different gasoline and ethanol blends.

Where did you install the flex fuel sensor?

We positioned our ethanol sensor in the engine bay along the fuel line leading toward the 3UZ fuel rail.

What transmission are you using behind the 3UZ?

We're using a TL70 6-speed manual transmission from the Toyota 86, Scion FR-S, and Subaru BRZ platform. You can see the installation in Part 5 of our 3UZ swap build.

Is the 3UZ-swapped IS300 keeping air conditioning?

No. We're removing the AC system to simplify the drift-focused build and create additional room for engine and exhaust maintenance.

Is the 3UZ IS300 using hydraulic power steering?

No. We're removing the factory hydraulic power steering system and plan to install electric power steering later in the build.

Our 3UZ-Swapped Lexus IS300 Finally Runs

Part 6 marks another major milestone in our Lexus IS300 3UZ-FE swap project.

During this episode, we completed:

  • eFlexFuel injector harness assembly
  • Eight-cylinder injector harness installation
  • Injector power wire identification
  • Flex fuel wiring and controller installation
  • Ethanol content sensor installation
  • Fuel line connections
  • Drive-by-wire setup work
  • First 3UZ engine startup
  • TL70 clutch bleeding
  • Transmission shifter clearance checks
  • AC delete preparation
  • Accessory belt changes
  • Final engine startup and idle testing

There's still more work ahead, including cooling, electric power steering, final wiring, fuel system cleanup, and everything else required before we can take the car drifting.

But we're getting closer. The 3UZ is installed, the TL70 is installed, and the engine runs.
