MK1 Motorsport Toyota & Lexus 1JZ / 2JZ Engine Front Main Seal Installer

Original price $25.99 - Original price $25.99
Original price
$25.99
$25.99 - $25.99
Current price $25.99

The MK1 Motorsport 1JZ / 2JZ Front Main Seal Installer is a purpose-built service tool designed to simplify front crankshaft seal installation on Toyota JZ engines. Whether you're performing maintenance on your own JZ-powered vehicle or regularly servicing 1JZ and 2JZ engines, this tool helps seat the front main seal in a controlled and repeatable manner.

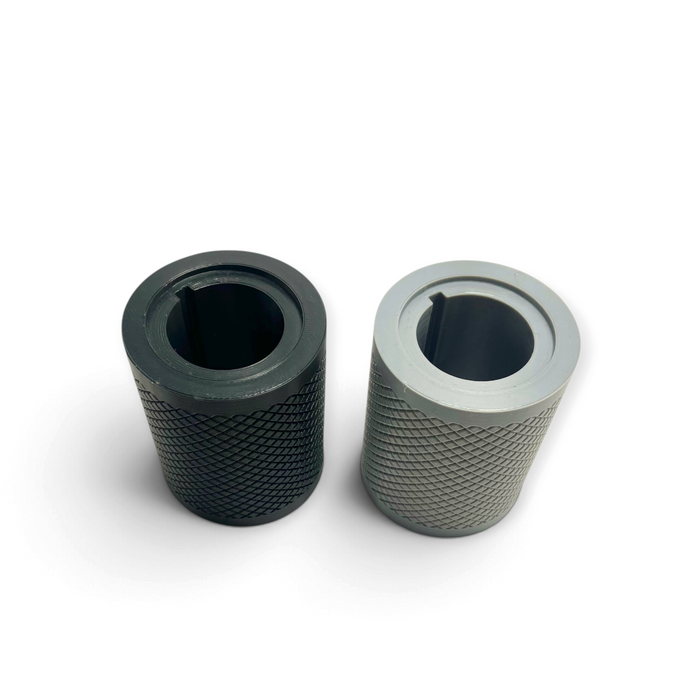

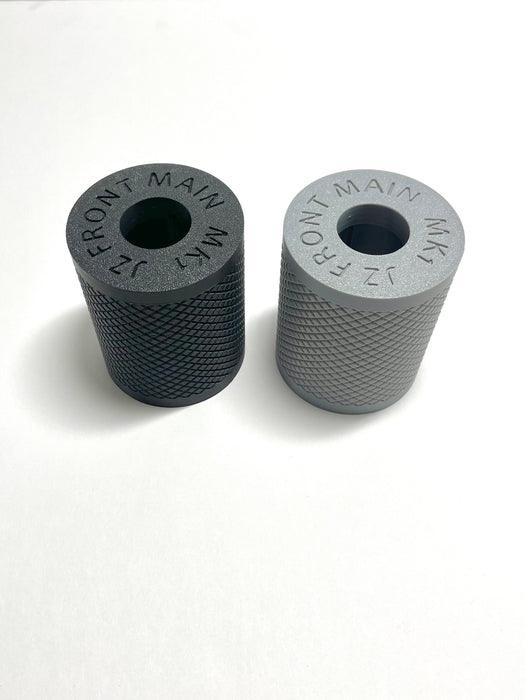

Manufactured using FDM 3D printing with high-infill ASA plastic, the installer is designed for repeated use. Its application-specific shape allows the factory crankshaft bolt to be used to press the seal into position, while an alternative installation method allows the tool to be used with a rubber mallet.

Designed for 1JZ & 2JZ Engines: Purpose-built for front main crankshaft seal installation on compatible Toyota 1JZ and 2JZ engines.

Controlled Seal Installation: Helps keep the front main seal properly positioned while it is seated into the oil pump housing.

Two Installation Methods: Can be used with the factory crankshaft bolt for controlled installation or with a rubber mallet using the alternative method described below.

High-Infill ASA Construction: FDM 3D printed from high-infill ASA plastic for durability and repeated service use.

Application-Specific Service Tool: Designed specifically to make JZ front crankshaft seal replacement more straightforward and repeatable.

Designed & Fabricated in the USA: MK1 Motorsport designs and manufactures the tool in the United States.

What's Included

  • (1) MK1 Motorsport 1JZ / 2JZ Front Main Seal Installer

Vehicle Fitment

  • Toyota 1JZ engine applications
  • Toyota 2JZ engine applications
  • Compatible JZ-powered Toyota and Lexus vehicles
  • Compatible engine-swapped applications using the applicable 1JZ or 2JZ front main seal configuration

Specifications

  • Brand: MK1 Motorsport
  • Product Type: Front Main Seal Installation Tool
  • Engine Application: Toyota 1JZ / 2JZ
  • Material: ASA Plastic
  • Manufacturing Process: FDM 3D Printed
  • Construction: High-Infill
  • Design & Fabrication Location: USA
  • Intended Use: Front Main Crankshaft Seal Installation
  • Reusable: Yes

Installation Method 1: Recommended

  1. Lubricate the inner lip of the new front main seal appropriately for installation.
  2. Position the seal through the front of the crankshaft and into the oil pump housing location.

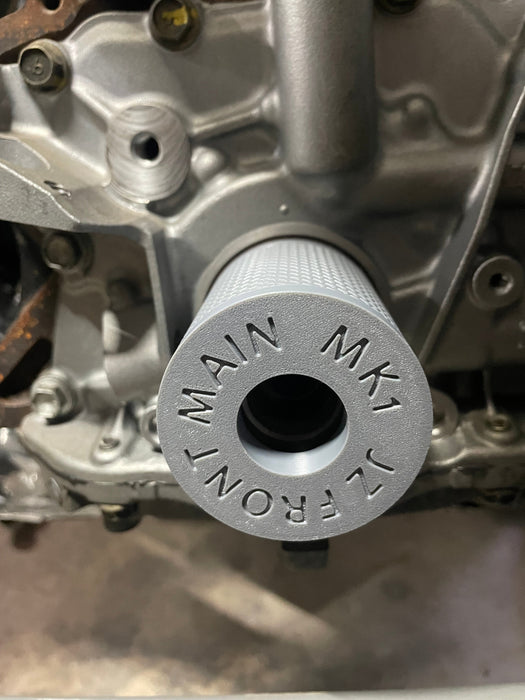

  3. Place the MK1 Motorsport seal installer over the front main seal.

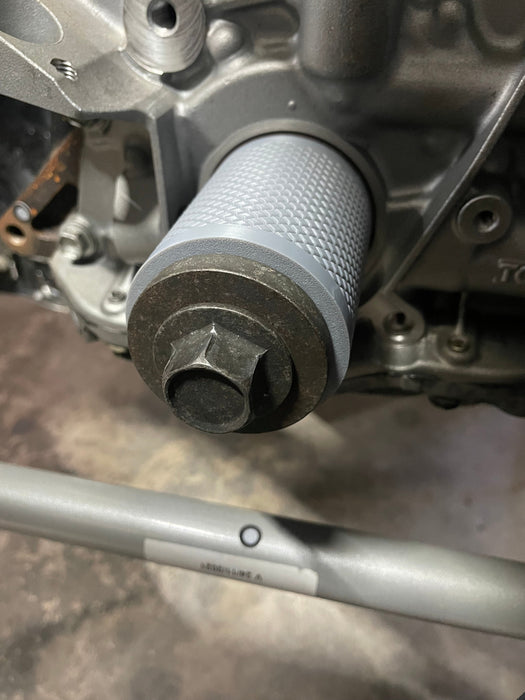

  4. Insert the factory crankshaft bolt through the seal installer.
  5. Carefully tighten the bolt to press the seal into position.
  6. Continue until the seal sits level with the oil pump housing.
  7. Do not over-tighten the installer. MK1 Motorsport specifies a firm snug fit of less than 40 lb-ft.

Installation Method 2

  1. Position the new seal onto the oil pump housing.
  2. Use the seal installer by hand to lightly press the seal into position while ensuring it remains centered.
  3. Using a rubber mallet, lightly and evenly tap the installer to seat the seal.
  4. Continue until the seal installer bottoms out against the front main pulley end.

Important Notes

  • Please allow approximately 1–2 weeks for production due to high demand.
  • Front main seal is not listed as included and should be sourced separately.
  • Confirm compatibility with your specific 1JZ or 2JZ engine configuration before use.
  • Follow the seal manufacturer's lubrication and installation requirements.
  • Keep the seal centered and install it evenly to help prevent seal damage or improper seating.
  • When using the factory crankshaft bolt installation method, do not over-tighten the tool. MK1 Motorsport specifies less than 40 lb-ft.
  • Use only a rubber or other appropriate non-marring mallet when following Method 2.
  • Inspect the tool for cracks, deformation, or other damage before each use.
  • Refer to the appropriate factory service information for disassembly, reassembly, and final crankshaft bolt torque specifications. The tool's stated installation limit is not the final crankshaft bolt torque specification.

Why Choose MK1 Motorsport?

The MK1 Motorsport Front Main Seal Installer is designed specifically around one of the more involved maintenance jobs on Toyota JZ engines. Rather than improvising a driver or attempting to seat the seal unevenly, the tool provides an application-specific surface for controlled installation.

Its high-infill ASA construction and reusable design make it a useful addition to the toolbox for JZ owners, engine builders, and technicians who regularly service 1JZ and 2JZ engines.

    Color: Grey
