MK1 Motorsport 1JZ / 2JZ GTE / GE Freeze Plug Punch

Original price $31.00 - Original price $31.00
Original price
$31.00
$31.00 - $31.00
Current price $31.00

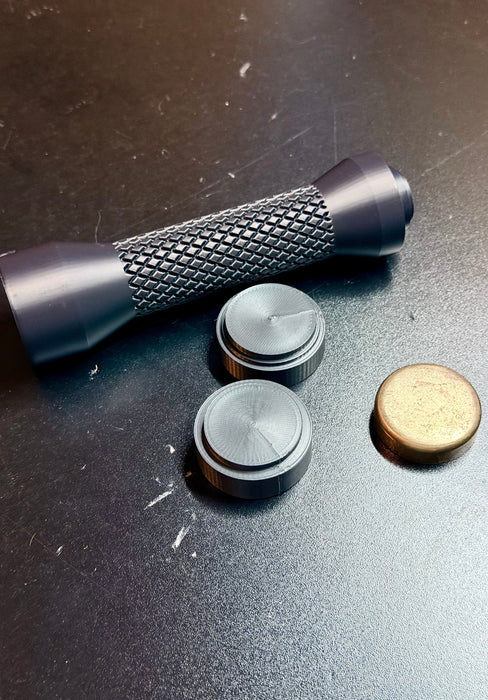

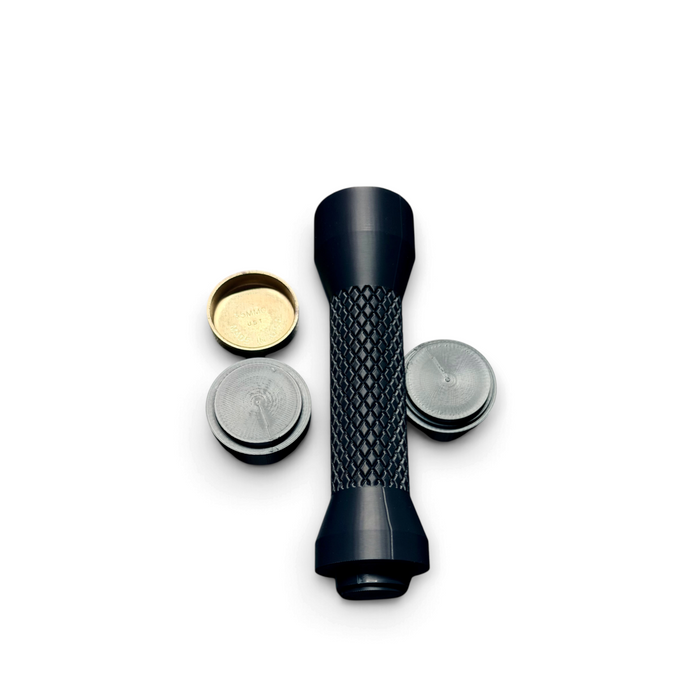

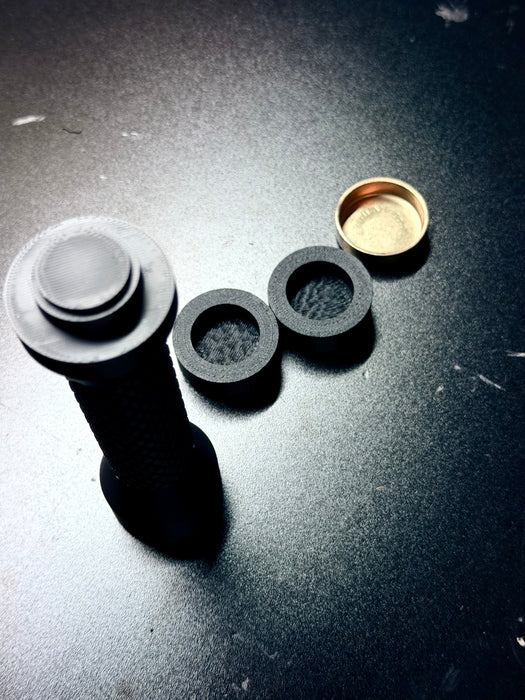

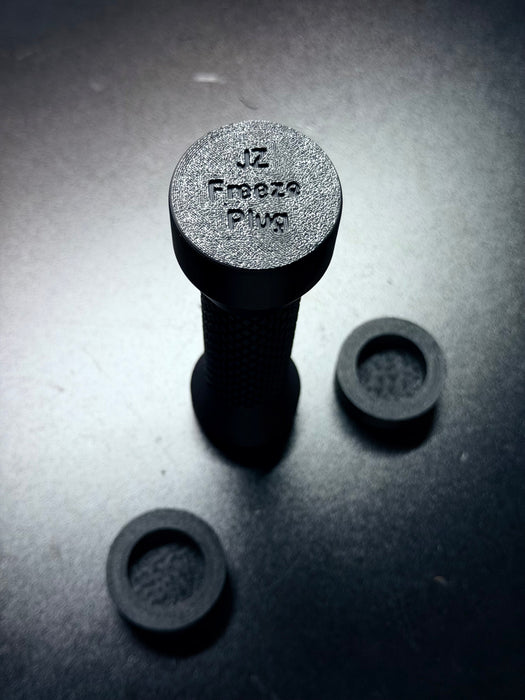

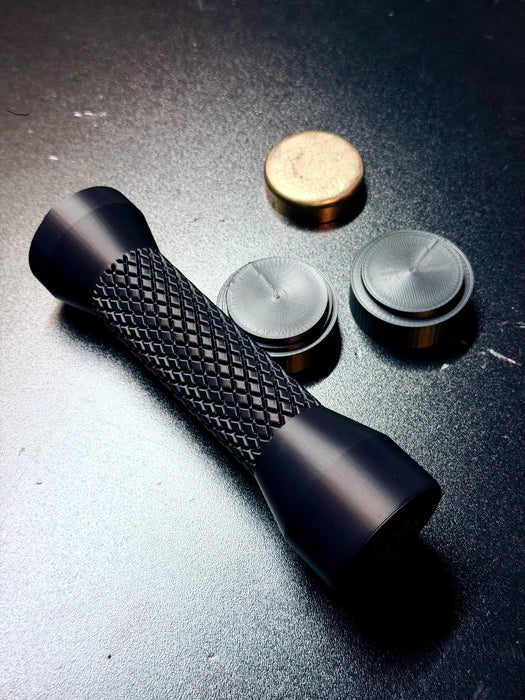

The MK1 Motorsport 1JZ / 2JZ Freeze Plug Punch is a purpose-built installation tool designed to simplify freeze plug installation on Toyota 1JZ and 2JZ GE and GTE engines. Its interchangeable design allows the tool to accommodate both 25 mm and 35 mm freeze plug applications.

Manufactured using FDM 3D printing with 100% infill ASA material, the punch is designed for repeated workshop use. The 35 mm application incorporates a built-in depth-stop design to help achieve consistent freeze plug placement, while the 25 mm application allows the installer to manually control installation depth due to variations in the engine block surface.

1JZ & 2JZ Compatibility: Designed specifically for compatible Toyota 1JZ and 2JZ GE and GTE engine applications.

25 mm & 35 mm Applications: Interchangeable design accommodates both 25 mm and 35 mm freeze plug sizes.

100% Infill ASA Construction: 3D printed from ASA material at 100% infill for strength, durability, and repeated workshop use.

Impact-Resistant Design: Designed to withstand normal freeze plug installation using an appropriate hammer or rubber mallet.

Precision-Fit Design: Application-specific punch heads help position and drive compatible freeze plugs during installation.

35 mm Depth Stop: The 35 mm application incorporates an automatic depth stop for repeatable installation depth.

Two 35 mm Installation Depths: Designed to accommodate installation either flush with the engine block or approximately 1/16" below the surface at the bottom of the factory bevel edge.

What's Included

  • (1) MK1 Motorsport 1JZ / 2JZ GTE / GE Freeze Plug Punch
  • (2) 35 mm Punch Heads

Vehicle Fitment

  • Toyota 1JZ-GE engine applications
  • Toyota 1JZ-GTE engine applications
  • Toyota 2JZ-GE engine applications
  • Toyota 2JZ-GTE engine applications
  • Compatible Toyota and Lexus vehicles using applicable JZ engine freeze plug configurations
  • Compatible JZ engine swap applications using the applicable 25 mm or 35 mm freeze plugs

Specifications

  • Brand: MK1 Motorsport
  • Product Type: Freeze Plug Installation Punch
  • Engine Family: Toyota 1JZ / 2JZ
  • Engine Compatibility: GE / GTE
  • Freeze Plug Applications: 25 mm / 35 mm
  • Material: ASA (Acrylonitrile Styrene Acrylate)
  • Construction: 3D Printed
  • Infill: 100%
  • 35 mm Depth Stop: Integrated
  • 25 mm Automatic Depth Stop: No
  • Intended Use: Freeze Plug Installation

Installation Depth

For the 35 mm freeze plug application, the integrated depth-stop system is designed to support two installation preferences:

  • Flush with the engine block surface
  • Approximately 1/16" below the block surface, aligning with the bottom of the factory bevel edge

Different JZ engine builders may use different freeze plug installation depths. The interchangeable 35 mm punch heads allow the installer to select the appropriate configuration for the intended installation.

The 25 mm freeze plug application does not incorporate an automatic depth stop because the corresponding engine block surfaces can vary. Installation depth must therefore be monitored manually.

Important Notes

  • Freeze plugs are not listed as included.
  • The 25 mm application does not have an automatic depth stop.
  • Use additional caution when installing 25 mm freeze plugs and monitor installation depth manually.
  • Confirm the required freeze plug diameter and installation depth for your specific engine before use.
  • Follow the applicable Toyota service information and freeze plug manufacturer's installation procedures where available.
  • Keep the punch aligned with the freeze plug during installation to reduce the risk of driving the plug unevenly.
  • Use controlled strikes during installation. Excessive impact can damage the tool, freeze plug, or engine block.
  • Inspect the punch and interchangeable heads for cracking, deformation, or other damage before each use.
  • Proper freeze plug installation is critical to the engine's cooling system. Verify each installed plug is correctly seated and sealed before operating the engine.

Why Choose MK1 Motorsport?

The MK1 Motorsport Freeze Plug Punch provides JZ owners, engine builders, and technicians with an application-specific tool for installing 25 mm and 35 mm freeze plugs. Its interchangeable design eliminates the need to improvise drivers while helping keep the freeze plug properly positioned during installation.

The 100% infill ASA construction is designed for repeated workshop use, while the integrated 35 mm depth-stop system provides a more consistent and repeatable approach to freeze plug installation.
