MK1 Motorsport Toyota & Lexus 1UZ / 2UZ / 3UZ Rear Main Seal Installer

Original price $25.00 - Original price $30.00
Original price
$25.00
$25.00 - $30.00
Current price $25.00

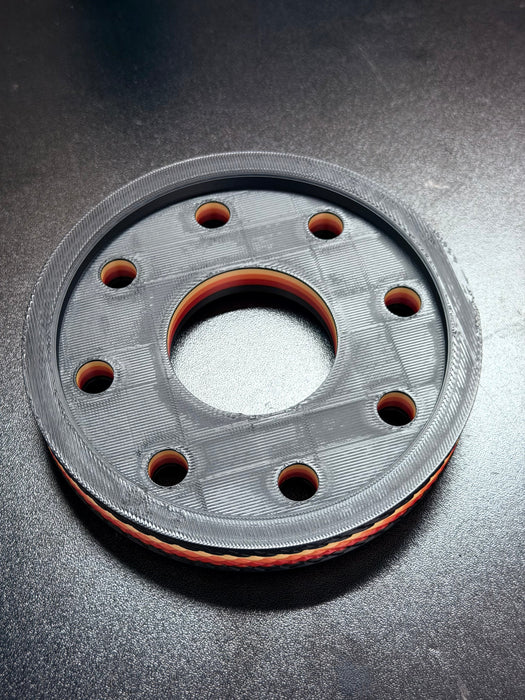

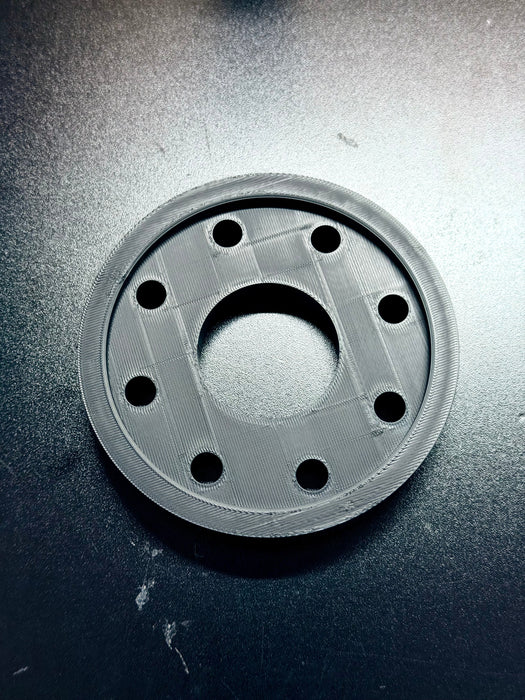

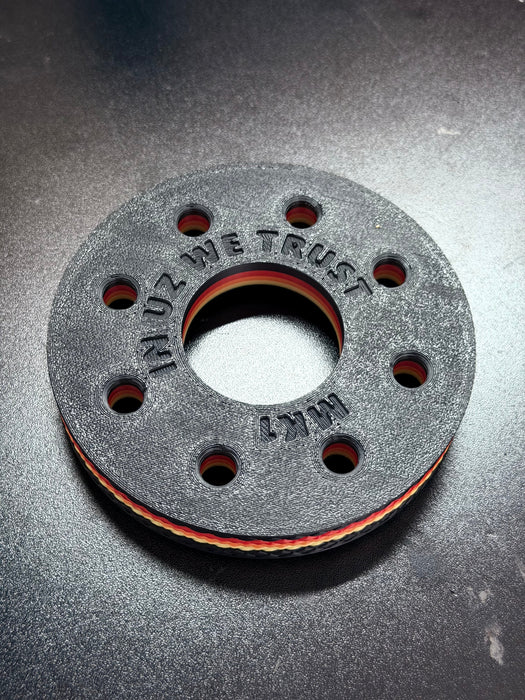

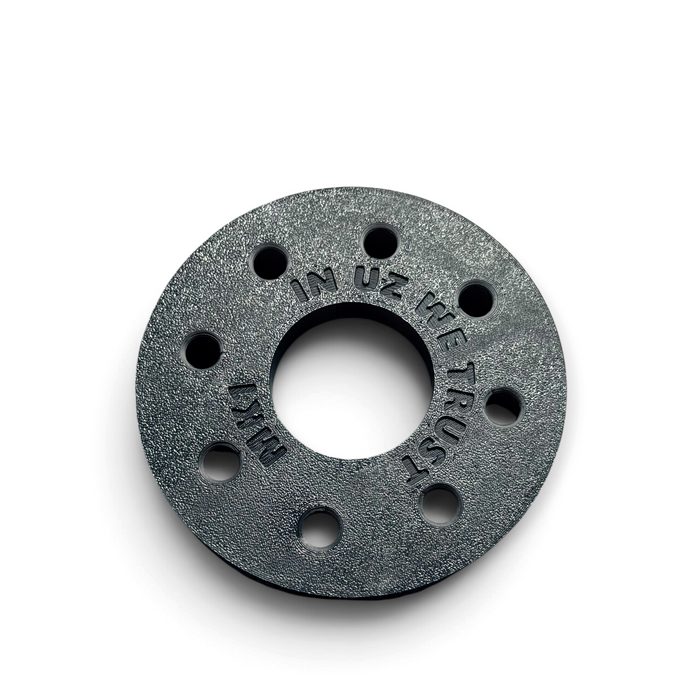

The MK1 Motorsport 1UZ / 2UZ / 3UZ Rear Main Seal Installer is a purpose-built service tool designed to make rear crankshaft seal installation on Toyota UZ engines more controlled and repeatable. Designed for Toyota enthusiasts, mechanics, and engine builders, the tool helps evenly seat the rear main seal after accessing the rear of the crankshaft.

Manufactured using FDM 3D printing from high-infill ASA plastic, the installer is designed for repeated workshop use. It supports Toyota 1UZ, 2UZ, and 3UZ engine applications and can be used with the flywheel bolts or carefully driven into position using a rubber mallet.

Designed for Toyota UZ Engines: Purpose-built for rear main seal installation on compatible 1UZ, 2UZ, and 3UZ engines.

Controlled Seal Installation: Helps seat the rear main crankshaft seal in a simple and repeatable manner.

Two Installation Methods: Can be installed using compatible flywheel bolts or carefully seated using a rubber mallet.

Designed Installation Depth: The tool is designed to bottom against the flywheel end of the crankshaft during installation.

Simulated Flywheel Thickness: Designed to simulate approximately 12 mm of flywheel thickness during the installation process.

High-Infill ASA Construction: FDM 3D printed from high-infill ASA plastic for durability and repeated workshop use.

Designed & Fabricated in the USA: All components are designed and fabricated in the United States.

What's Included

  • (1) MK1 Motorsport 1UZ / 2UZ / 3UZ Rear Main Seal Installer

Vehicle Fitment

  • Toyota 1UZ engine applications
  • Toyota 2UZ engine applications
  • Toyota 3UZ engine applications
  • Compatible Toyota and Lexus vehicles equipped with applicable UZ engines
  • Compatible engine swap and standalone engine applications using an applicable 1UZ, 2UZ, or 3UZ engine

Specifications

  • Brand: MK1 Motorsport
  • Product Type: Rear Main Seal Installer
  • Engine Family: Toyota UZ
  • Engine Compatibility: 1UZ / 2UZ / 3UZ
  • Material: ASA Plastic
  • Construction: High-Infill
  • Manufacturing Process: FDM 3D Printed
  • Simulated Flywheel Thickness: Approximately 12 mm
  • Maximum Recommended Installation Torque: Less than 14 ft-lbs
  • Maximum Bolt Thread Length: 28 mm
  • Design & Fabrication Location: USA
  • Intended Use: Rear Main Crankshaft Seal Installation

Installation Method 1: Recommended

  1. Lubricate the inner lip of the rear main seal.
  2. Position the seal at the rear main seal housing.
  3. Place the MK1 Motorsport Rear Main Seal Installer over the seal.
  4. Insert compatible flywheel bolts through the installer.
  5. Carefully and evenly tighten the bolts to begin seating the seal.
  6. Continue until the installer bottoms against the flywheel end of the crankshaft.
  7. Do not over-tighten the installer. MK1 Motorsport recommends less than 14 ft-lbs. A firm fit is all that is required.

Installation Method 2

  1. Position the rear main seal at the rear main seal housing.
  2. Place the installer over the seal and lightly press it into position by hand.
  3. Use a rubber mallet to lightly and evenly tap the installer.
  4. Continue until the installer bottoms against the flywheel end of the crankshaft.

Important Notes

  • Please allow approximately 1–2 weeks for production before shipment due to high demand.
  • Rear main seal is not included.
  • The installer is designed to simulate approximately 12 mm of flywheel thickness.
  • MK1 Motorsport recommends beginning with Method 2 when using a stock flywheel bolt with an automatic transmission or shortened ARP bolts used with certain twin-disc flywheel configurations.
  • Do not exceed the manufacturer's recommended installation torque of less than 14 ft-lbs when using Method 1.
  • Do not use a bolt with a thread length greater than 28 mm. Excessive bolt length could damage engine components.
  • The stated torque limit applies to use of the seal installer and is not a final flywheel bolt torque specification.
  • Use a rubber or other appropriate non-marring mallet when following Method 2.
  • Keep the seal properly centered during installation to reduce the risk of damaging or improperly seating it.
  • Inspect the installer for cracks, deformation, or other damage before each use.
  • Refer to the appropriate Toyota service information for engine disassembly, reassembly, and final fastener torque specifications.

Why Choose MK1 Motorsport?

The MK1 Motorsport 1UZ / 2UZ / 3UZ Rear Main Seal Installer provides an application-specific alternative to improvised seal installation methods. Its design allows the rear main seal to be seated consistently while servicing Toyota UZ engines.

With compatibility across 1UZ, 2UZ, and 3UZ applications, high-infill ASA construction, and two supported installation methods, it is a practical reusable service tool for Toyota and Lexus enthusiasts, mechanics, and engine builders.

Color: Black
