MK1 Motorsport Toyota & Lexus 2JZ GTE / GE Non-VVT-i Engine Cam Seal Installer

Original price $9.99 - Original price $9.99
Original price
$9.99
$9.99 - $9.99
Current price $9.99

The MK1 Motorsport 2JZ GTE / GE Non-VVT-i Cam Seal Installer is a purpose-built service tool designed to make camshaft seal installation on Toyota 2JZ Non-VVT-i engines more controlled and repeatable. Designed for JZ enthusiasts, mechanics, and engine builders, the tool helps properly seat the cam seal after accessing the front camshaft journal.

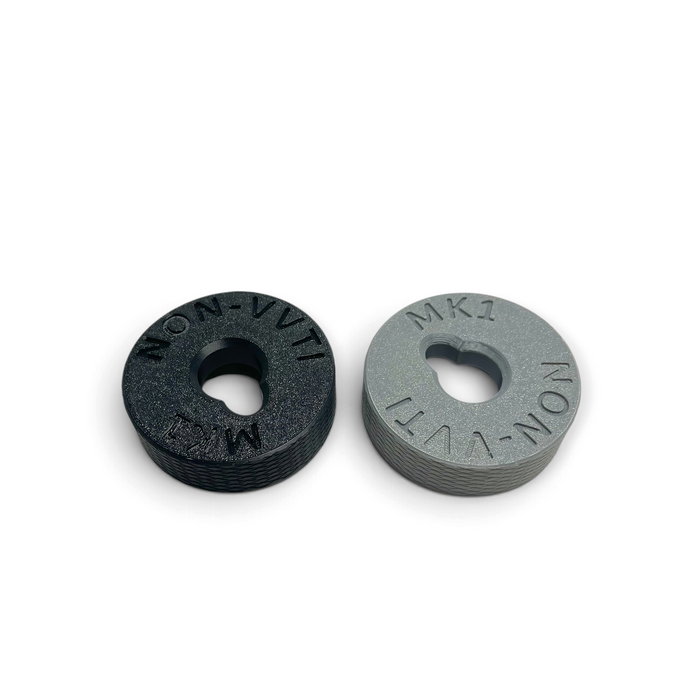

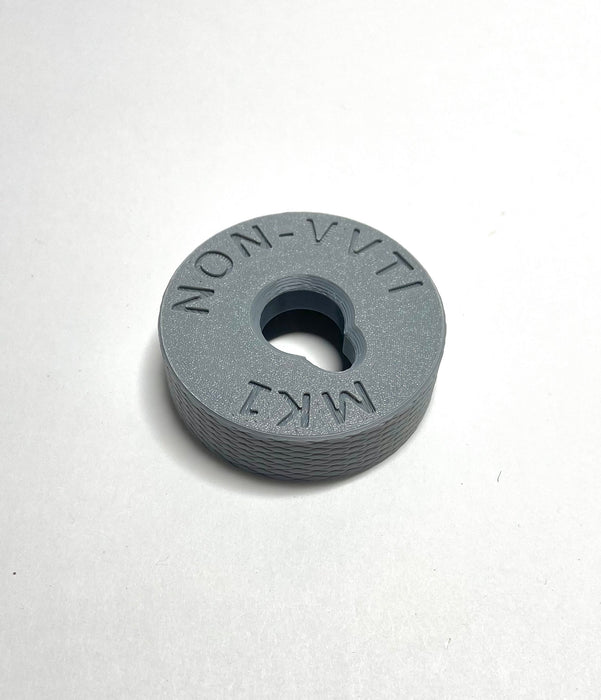

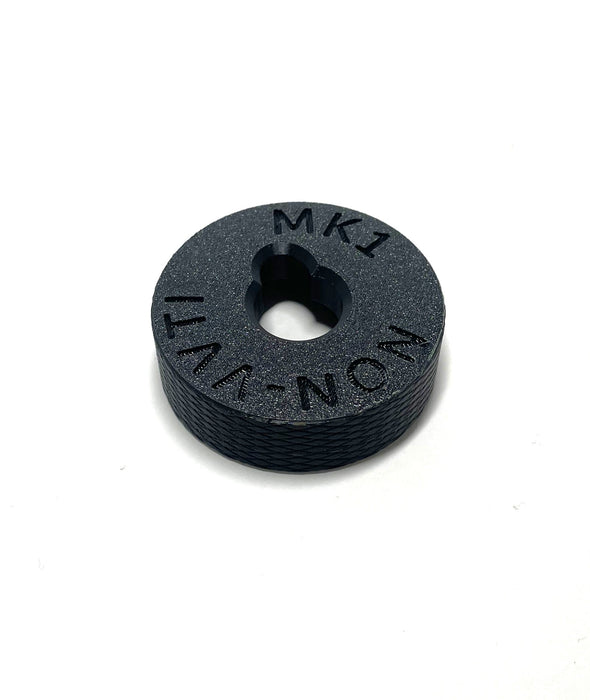

Manufactured using FDM 3D printing from high-infill black ASA plastic, the installer is designed for repeated workshop use. Its application-specific design incorporates a keyway for alignment with the camshaft dowel pin and bottoms against the first cam cap to provide a consistent installation position.

Designed for 2JZ GE & GTE Non-VVT-i Engines: Purpose-built for camshaft seal installation on compatible Toyota 2JZ-GE and 2JZ-GTE Non-VVT-i engines.

Controlled Seal Installation: Helps seat the camshaft seal evenly and consistently without relying on improvised seal drivers.

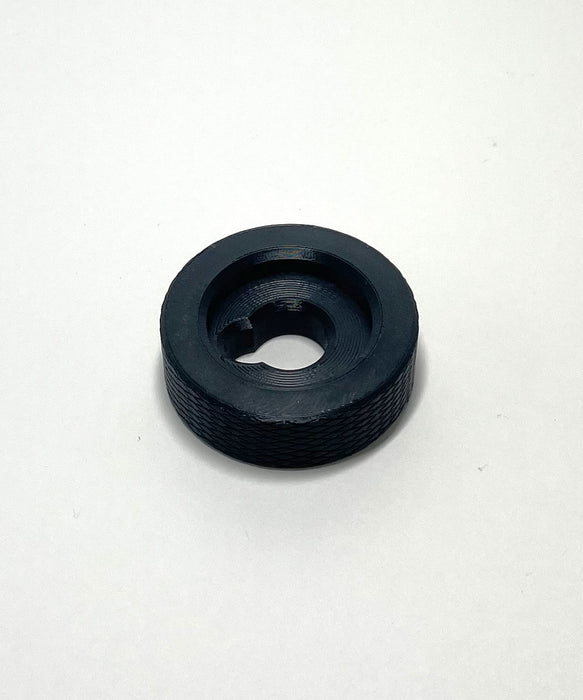

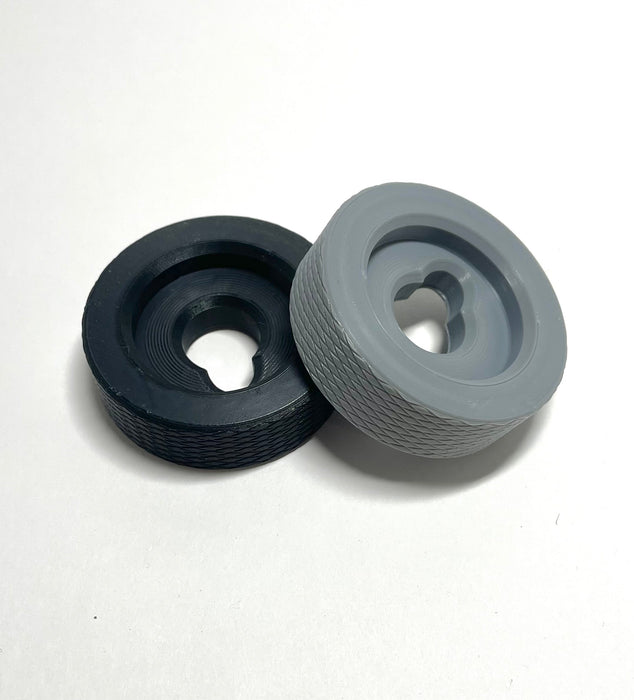

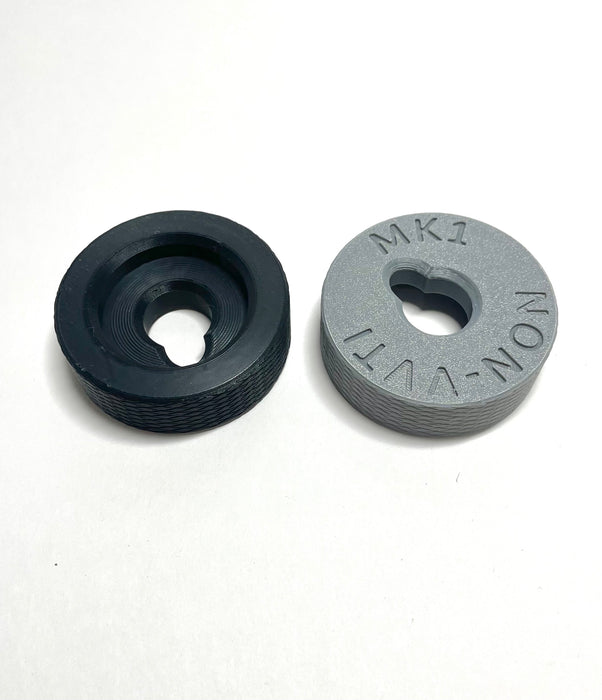

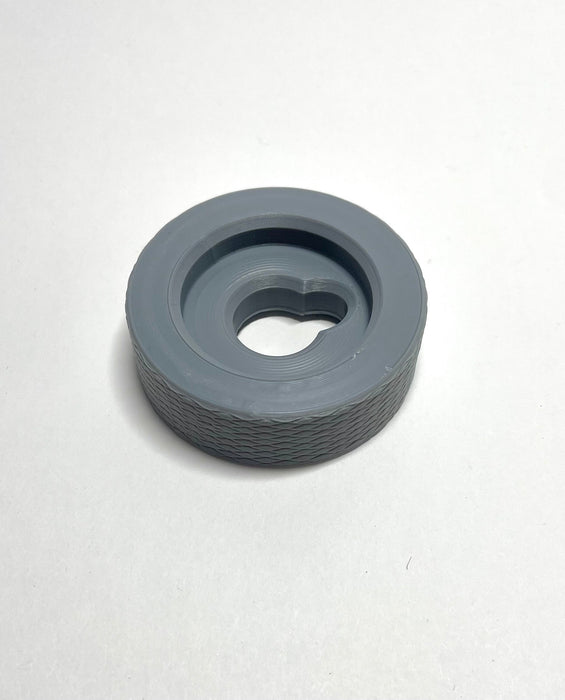

Camshaft Keyway Alignment: The installer incorporates a keyway designed to align with the dowel pin on the camshaft during installation.

Repeatable Installation Depth: Designed to bottom against the surface of the first cam cap to provide a consistent stopping point.

Two Installation Methods: Can be used with the factory camshaft bolt or carefully driven into position using a rubber mallet.

High-Infill ASA Construction: FDM 3D printed from high-infill black ASA plastic for durability and repeated workshop use.

Designed & Fabricated in the USA: All components are designed and fabricated in the United States.

What's Included

  • (1) MK1 Motorsport 2JZ GTE / GE Non-VVT-i Cam Seal Installer

Vehicle Fitment

  • Toyota 2JZ-GE Non-VVT-i engine applications
  • Toyota 2JZ-GTE Non-VVT-i engine applications
  • Compatible Toyota and Lexus vehicles equipped with an applicable 2JZ Non-VVT-i engine
  • Compatible engine swap and standalone engine applications using an applicable 2JZ-GE or 2JZ-GTE Non-VVT-i engine

Specifications

  • Brand: MK1 Motorsport
  • Product Type: Cam Seal Installer
  • Engine Family: Toyota 2JZ
  • Engine Compatibility: GE / GTE
  • Engine Configuration: Non-VVT-i
  • Material: ASA Plastic
  • Color: Black
  • Construction: High-Infill
  • Manufacturing Process: FDM 3D Printed
  • Installation Reference: First Cam Cap
  • Alignment Feature: Camshaft Dowel Pin Keyway
  • Design & Fabrication Location: USA
  • Intended Use: Camshaft Seal Installation
  • Quantity: 1

Installation Method 1: Recommended

  1. Lubricate the inner lip of the camshaft seal.
  2. Position the seal onto the front main camshaft journal.
  3. Place the MK1 Motorsport Cam Seal Installer over the seal.
  4. Align the installer's keyway with the dowel pin on the camshaft.
  5. Insert the factory camshaft bolt through the installer.
  6. Carefully tighten the bolt to begin seating the seal.
  7. Continue until the installer bottoms against the surface of the first cam cap.
  8. Do not over-tighten the installer. A firm fit is all that is required.

Installation Method 2

  1. Position the seal onto the front main camshaft journal.
  2. Lightly press the seal into position by hand using the installer.
  3. Align the installer's keyway with the camshaft dowel pin.
  4. Position the installer over the cam seal.
  5. Use a rubber mallet to lightly and evenly tap the installer.
  6. Continue until the installer bottoms against the surface of the first cam cap.

Important Notes

  • Please allow approximately 1–2 weeks of production time before shipment due to high demand.
  • Camshaft seal is not included.
  • Designed specifically for compatible 2JZ-GE and 2JZ-GTE Non-VVT-i engines.
  • This installer is for Non-VVT-i applications. Verify your engine configuration before ordering.
  • Always align the installer keyway with the camshaft dowel pin before applying force.
  • Lubricate the inner lip of the seal before installation.
  • Do not over-tighten the installer when using the factory camshaft bolt method.
  • Use a rubber or other appropriate non-marring mallet when following Method 2.
  • Keep the seal properly centered during installation to reduce the risk of damage or improper seating.
  • Inspect the installer for cracks, deformation, or other damage before each use.
  • Refer to the appropriate Toyota service information for engine disassembly, reassembly, and final fastener torque specifications.

Why Choose MK1 Motorsport?

The MK1 Motorsport 2JZ GTE / GE Non-VVT-i Cam Seal Installer provides an application-specific alternative to improvised cam seal installation methods. Its keyed design helps maintain alignment with the camshaft, while the first cam cap provides a consistent stopping point during installation.

For enthusiasts, mechanics, and engine builders regularly servicing Toyota 2JZ Non-VVT-i engines, it provides a reusable tool for making camshaft seal replacement more controlled and repeatable.
