Lunaticsco BC Racing DS Series coilover kit for Subaru BRZ featuring satin chrome dampers and adjustable springs

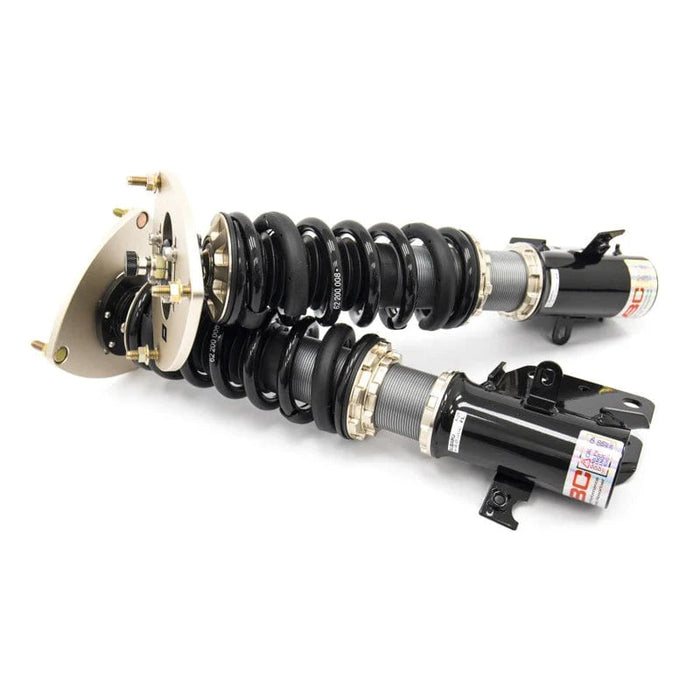

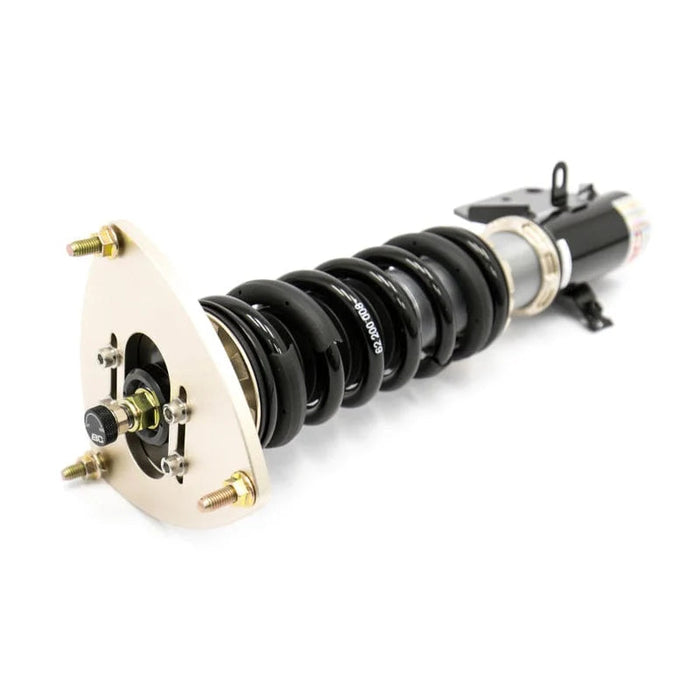

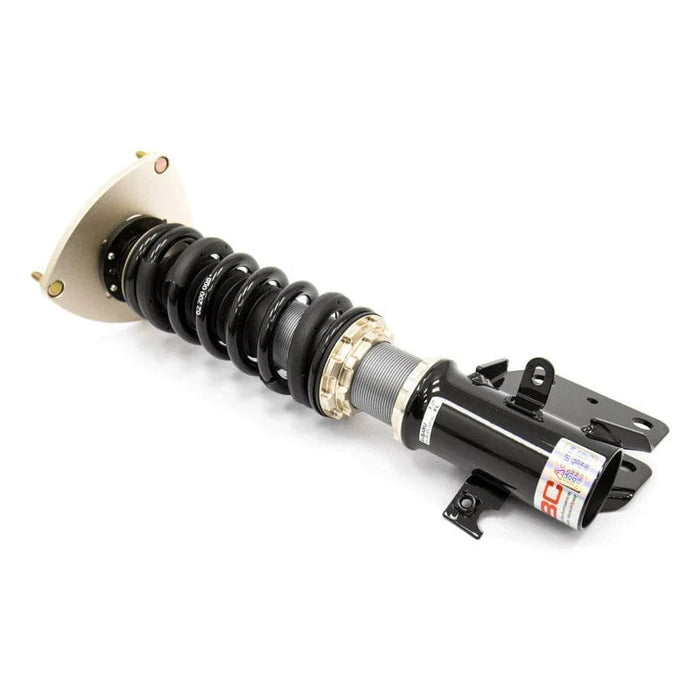

BC Racing DS Series Coilovers Subaru BRZ ZC6 RWD 2013–2020

by BC Racing
$1,395.00 - $1,395.00
$1,395.00
$1,395.00 - $1,395.00
$1,395.00

Upgrade the suspension on your 2013–2020 Subaru BRZ RWD with the BC Racing DS Series Coilovers. Engineered specifically for the ZC6 chassis, the F-20-DS combines BC Racing's proven monotube damper architecture with proprietary digressive piston technology for sharper handling, precise suspension tuning, and an adjustable lowered stance.

The DS Series builds on BC Racing's BR Series platform with digressive valving that generates increased damping force at lower piston velocities. This improves chassis control during body roll, pitch, brake dive, and rapid weight transfer. At higher piston velocities, damping remains more linear to help maintain compliance over bumps and uneven pavement. With 30-click damping adjustment, full-length ride height adjustment, standard front camber plates, and matched 8K front and rear spring rates, the DS Series provides extensive tuning capability for street and performance-oriented BRZ builds.

Digressive Piston Valving: BC Racing's proprietary digressive piston increases low-speed damping force for sharper chassis response during cornering, braking, acceleration, and rapid transitions.

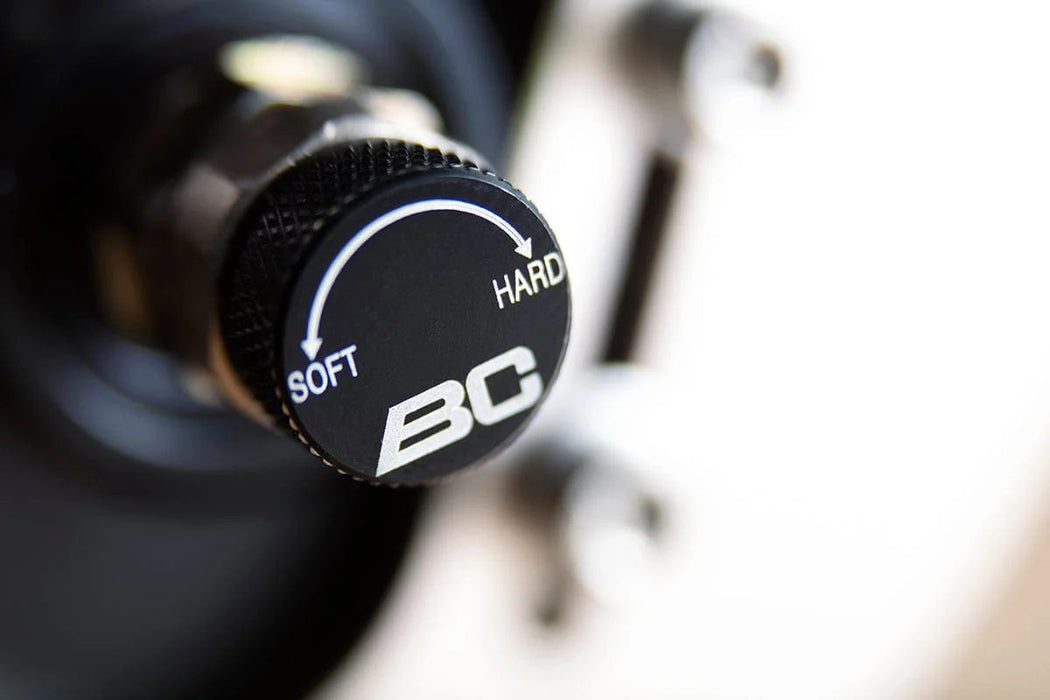

30-Click Damping Adjustment: Simultaneously adjusts compression and rebound through 30 settings, allowing suspension behavior to be fine-tuned for different roads and driving conditions.

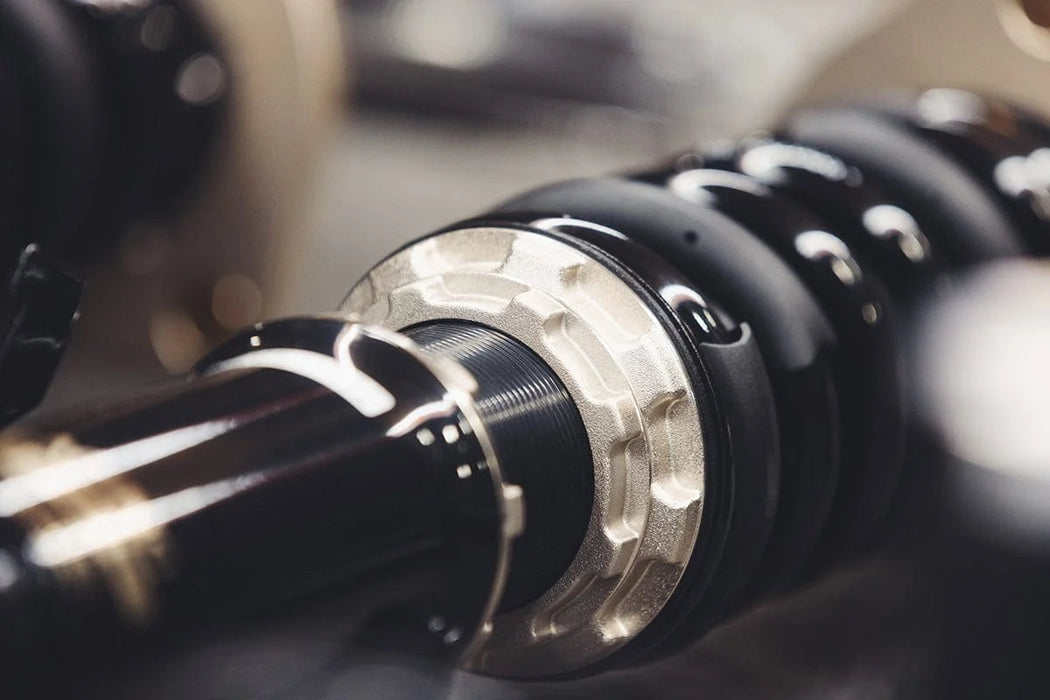

Full-Length Ride Height Adjustment: Allows vehicle height to be adjusted independently from spring preload, providing greater flexibility when dialing in stance and suspension travel.

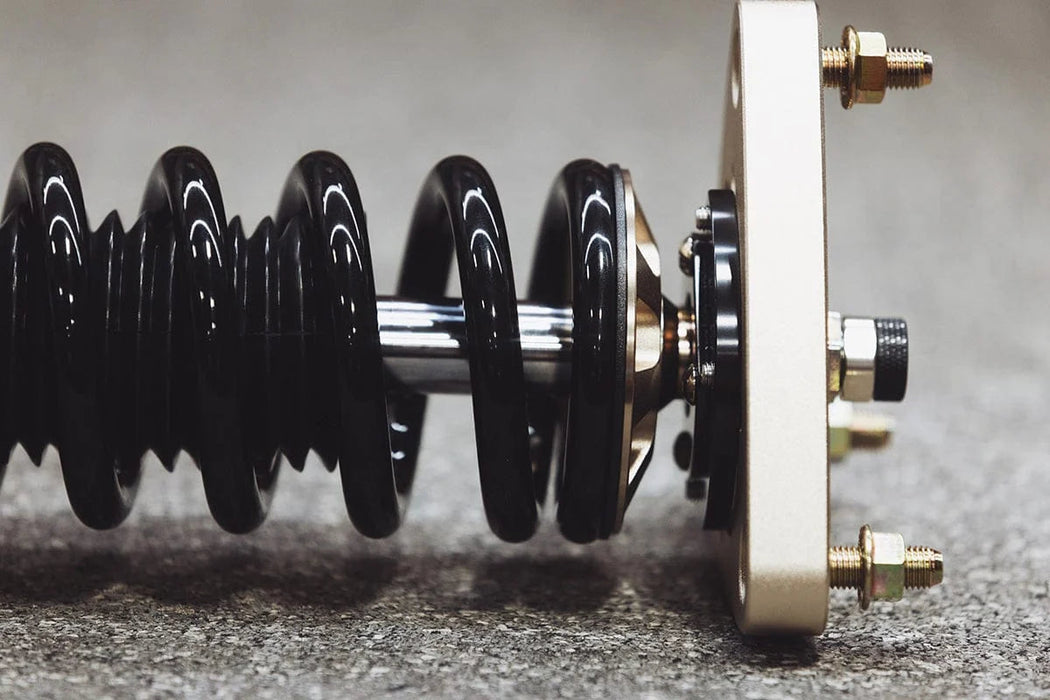

Front Camber Plates: Standard front camber adjustment provides additional alignment flexibility for performance street and track-oriented setups.

Monotube Damper Design: Single-cylinder construction provides consistent damping characteristics and effective heat dissipation during demanding driving.

Matched Spring Rates: Features 8 kgf/mm front and 8 kgf/mm rear spring rates matched specifically to the Subaru BRZ ZC6 platform.

Satin Chrome Shock Bodies: Distinctive satin chrome damper bodies visually differentiate the DS Series from BC Racing's BR Series.

Swift Spring Option: Compatible with optional 62mm ID Swift Springs using 62-140-X front and 62-152-X rear configurations.

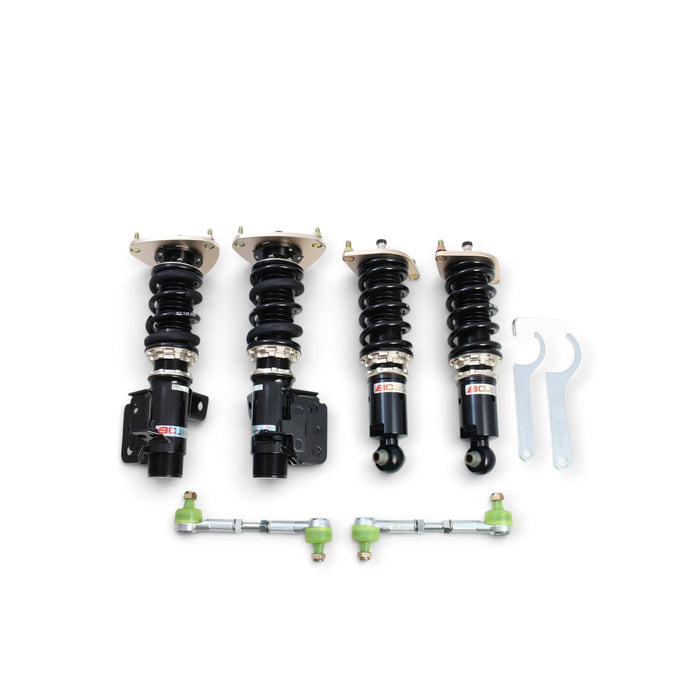

What's Included

  • (1) BC Racing DS Series Coilover Kit
  • Front coilover assemblies with matched springs
  • Rear coilover assemblies with matched springs
  • Front camber-adjustable top mounts
  • Adjustment hardware where applicable

Vehicle Fitment

  • Subaru BRZ ZC6 RWD (2013–2020)

Specifications

  • BC Racing SKU: F-20-DS
  • Series: DS
  • Chassis: ZC6
  • Drivetrain: RWD
  • Damper Design: Monotube
  • Damping Adjustment: 30-click simultaneous compression and rebound
  • Front Spring: 62-140-8 kgf/mm
  • Rear Spring: 62-160-8 kgf/mm
  • Front Spring Rate: 8 kgf/mm
  • Rear Spring Rate: 8 kgf/mm
  • Front Camber Adjustment: Standard
  • Optional Front Swift Spring: 62-140-X
  • Optional Rear Swift Spring: 62-152-X
  • Shock Body Finish: Satin Chrome

Important Notes

  • Fits Subaru BRZ ZC6 RWD models from 2013–2020.
  • BC Racing SKU: F-20-DS.
  • Front camber plates are included as standard.
  • Swift Springs are optional and may be sold separately depending on configuration.
  • Verify chassis code, drivetrain, model year, and selected spring configuration before ordering.
  • Professional installation is recommended.
  • A four-wheel alignment is recommended after installation or ride height adjustment.

Why Choose BC Racing DS Series Coilovers?

BC Racing DS Series Coilovers are an excellent choice for Subaru BRZ owners seeking more immediate chassis response while retaining the adjustability needed for daily driving and performance use. Digressive piston valving increases control during low-speed damper movements, helping the lightweight ZC6 chassis remain composed through corners, braking zones, acceleration, and rapid transitions.

With 30-click damping adjustment, full-length ride height adjustment, standard front camber plates, matched 8K spring rates, and optional Swift Springs, the F-20-DS provides extensive flexibility for dialing in both the stance and handling of your BRZ.
