BC Racing DS Series Extreme Low Coilovers Lexus IS300 / IS200 RWD 1999–2005

BC Racing DS Series Extreme Low Coilovers Lexus IS300 / IS200 RWD 1999–2005

by BC Racing
$1,395.00 - $1,395.00
$1,395.00
$1,395.00 - $1,395.00
$1,395.00

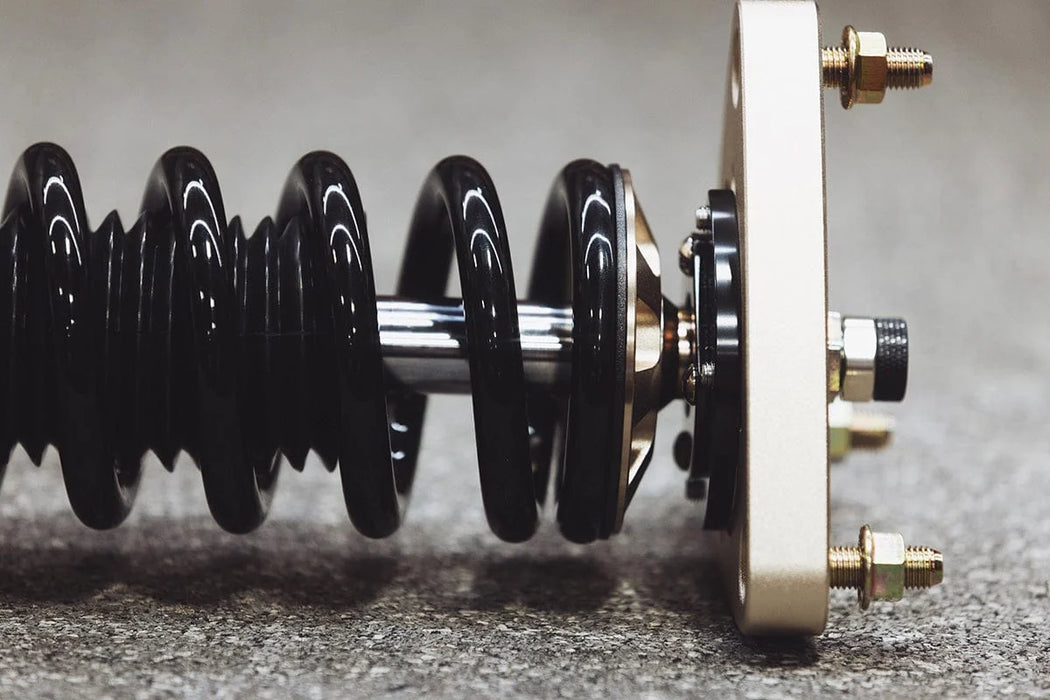

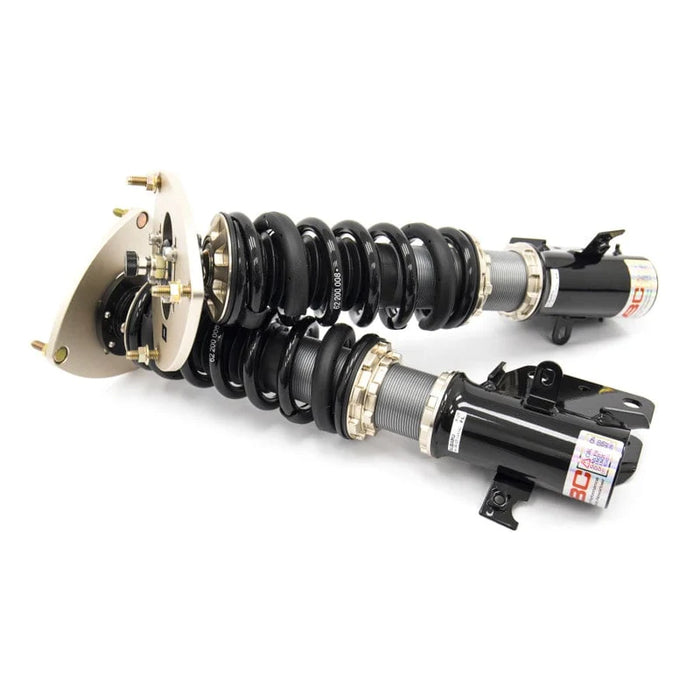

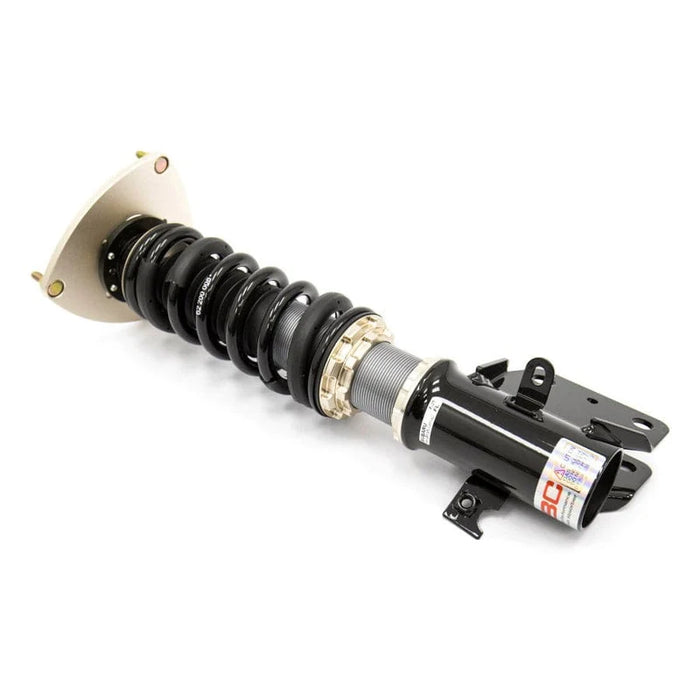

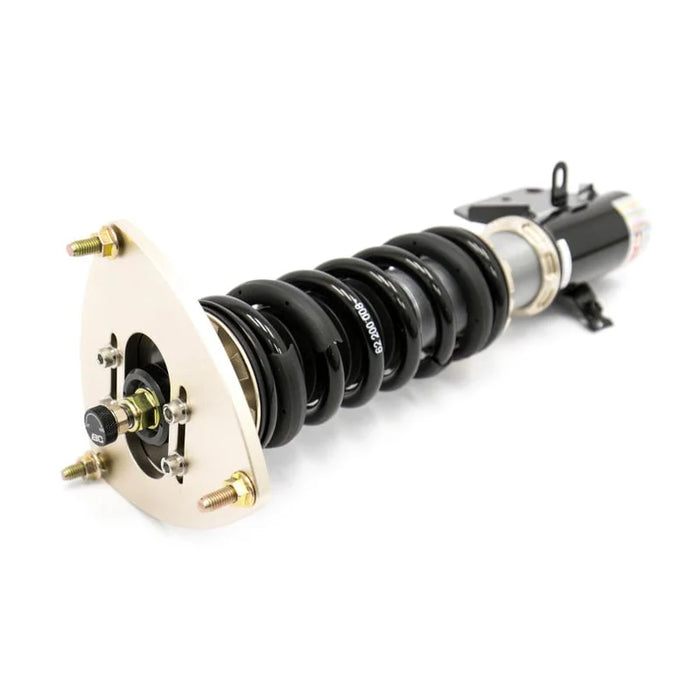

Upgrade your 1999–2005 Lexus IS300 or IS200 RWD with the BC Racing DS Series Extreme Low Coilovers. Engineered for the GXE10/JEC10 platform, the R-01-DS combines BC Racing's proven monotube damper architecture with proprietary digressive piston technology, full-length ride height adjustment, and chassis-specific spring rates for enthusiasts seeking an aggressive lowered stance with precise suspension control.

The DS Series builds on BC Racing's BR Series platform with digressive valving that generates increased damping force at lower piston velocities. This provides greater control over body roll, pitch, brake dive, and rapid weight transfer while maintaining a more linear damping response at higher piston velocities. This listing features the Extreme ride-height and spring configuration for drivers looking to achieve a more aggressive suspension setup than a conventional coilover configuration.

Digressive Piston Valving: BC Racing's proprietary digressive piston increases low-speed damping force for sharper chassis response during cornering, braking, acceleration, and rapid weight transitions.

Extreme Low Configuration: This kit features the Extreme ride-height and spring configuration for enthusiasts seeking a more aggressive lowered stance.

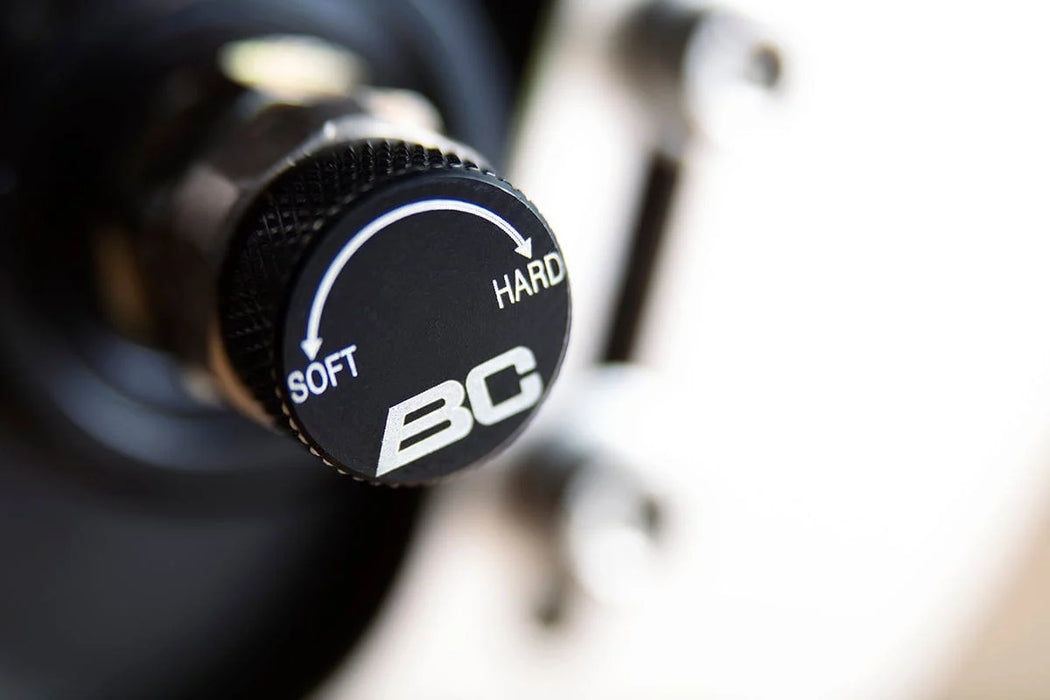

30-Click Damping Adjustment: Simultaneously adjusts compression and rebound through 30 settings, allowing suspension behavior to be fine-tuned for different roads and driving conditions.

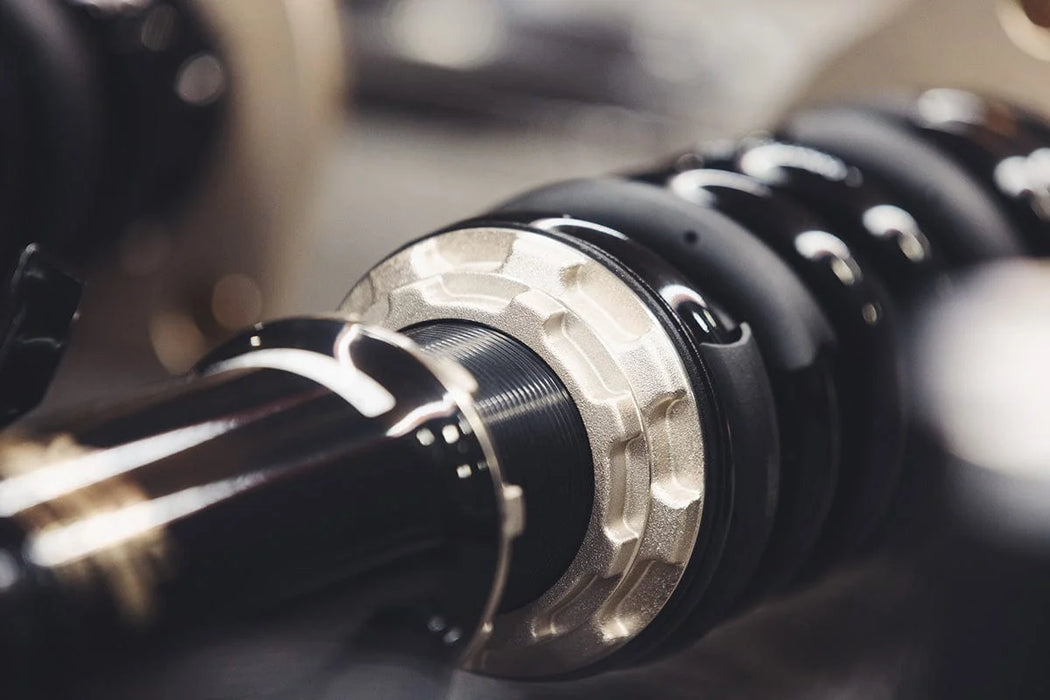

Full-Length Ride Height Adjustment: Provides extensive height adjustment while allowing ride height to be set independently from spring preload.

Monotube Damper Design: Single-cylinder construction provides consistent damping characteristics and effective heat dissipation during demanding driving.

Matched Spring Rates: Features 11 kgf/mm front and 7 kgf/mm rear spring rates matched to this Extreme Low configuration.

Satin Chrome Shock Bodies: Distinctive satin chrome damper bodies visually differentiate the DS Series from BC Racing's BR Series.

Swift Spring Option: Compatible with optional 62mm ID Swift Springs using 62-203-X front and 62-203-X rear configurations.

What's Included

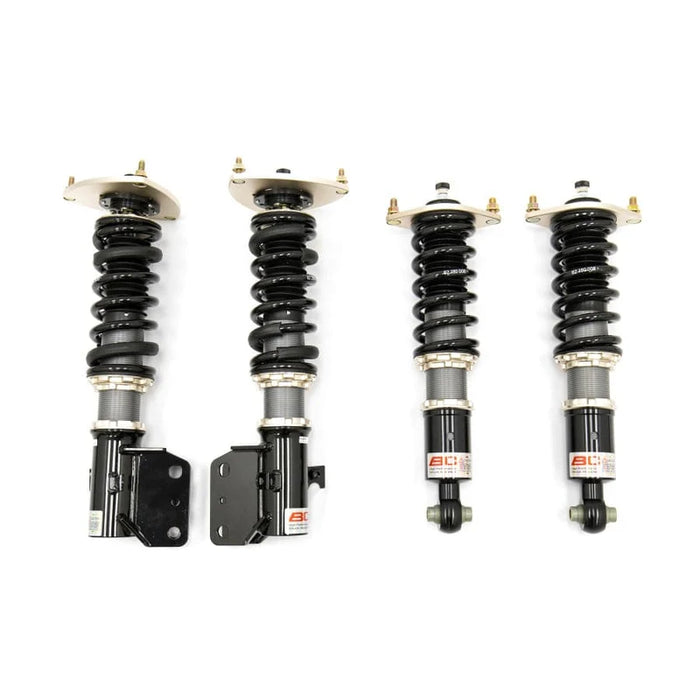

  • (1) BC Racing DS Series Coilover Kit
  • Front coilover assemblies with matched springs
  • Rear coilover assemblies with matched springs
  • Adjustment hardware where applicable

Vehicle Fitment

  • Lexus IS200 RWD GXE10 (1999–2005)
  • Lexus IS300 RWD JCE10 (2001–2005)

Specifications

  • BC Racing SKU: R-01-DS
  • Series: DS
  • Configuration: Extreme Low
  • Chassis: GXE10 / JEC10
  • Drivetrain: RWD
  • Damper Design: Monotube
  • Damping Adjustment: 30-click simultaneous compression and rebound
  • Front Spring: 62-200-11 kgf/mm
  • Rear Spring: 62-220-7 kgf/mm
  • Front Spring Rate: 11 kgf/mm
  • Rear Spring Rate: 7 kgf/mm
  • Optional Front Swift Spring: 62-203-X
  • Optional Rear Swift Spring: 62-203-X
  • Shock Body Finish: Satin Chrome

Important Notes

  • Fits Lexus IS200 RWD applications from 1999–2005.
  • Fits Lexus IS300 RWD applications from 2001–2005.
  • BC Racing SKU: R-01-DS.
  • This listing is for the Extreme ride-height and spring configuration.
  • Extreme lowering may reduce available ground clearance and suspension travel compared with standard-height configurations.
  • Swift Springs are optional and may be sold separately depending on configuration.
  • Verify chassis code, drivetrain, model year, and desired ride-height configuration before ordering.
  • Professional installation is recommended.
  • A four-wheel alignment is recommended after installation or ride height adjustment.

Why Choose BC Racing DS Series Coilovers?

BC Racing DS Series Coilovers are designed for enthusiasts who want more immediate chassis response while retaining extensive control over ride height and damping. The proprietary digressive piston increases low-speed damping control, helping the IS chassis remain composed through cornering, braking, acceleration, and rapid transitions.

With its Extreme Low configuration, 30-click damping adjustment, full-length height adjustment, chassis-matched 11K/7K spring rates, and optional Swift Springs, the R-01-DS provides a performance-focused solution for aggressively lowered IS200 and IS300 builds.
