Xcessive Manufacturing JZ Oil Pan - Front Sump

Original price $594.00 - Original price $594.00
Original price
$594.00
$594.00 - $594.00
Current price $594.00

Increase oil capacity and improve lubrication under demanding driving conditions with the Xcessive Manufacturing JZ Front Sump Oil Pan. Designed for Toyota 1JZ and 2JZ engines, this high-capacity cast aluminum oil pan features an integrated trap-door baffling system to help maintain consistent oil supply during hard acceleration, braking, and cornering. Whether you're building a drift car, drag car, road race car, or high-performance street vehicle, this oil pan provides the additional capacity and oil control needed to protect your engine.

High-Capacity Design: Holds approximately 7 quarts of oil, significantly increasing capacity over many factory 3-4 quart front sump pans to improve cooling and oil turnover.

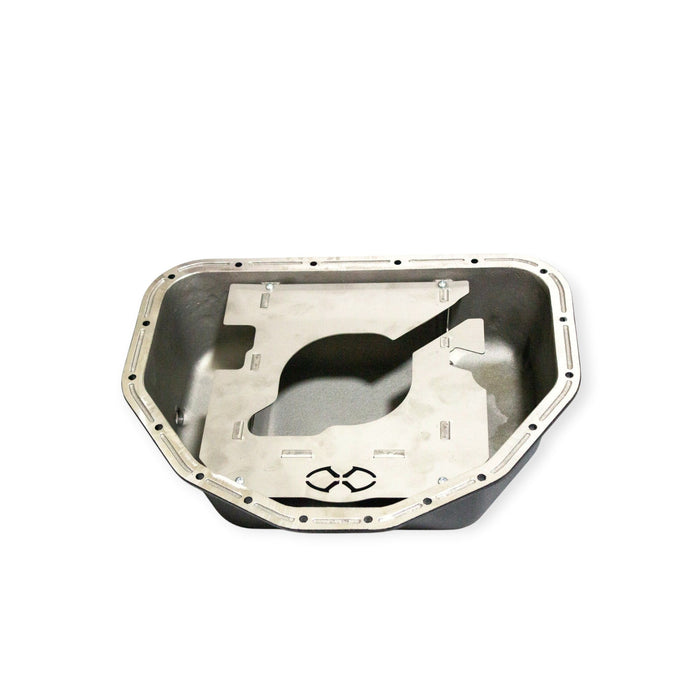

Integrated Trap-Door Baffling: Stainless steel baffle incorporates three trap doors—two for lateral oil control and one for forward acceleration—to help keep the oil pickup submerged during aggressive driving.

Improved Oil Control: Larger oil volume helps reduce oil temperatures and minimize oil starvation during sustained high-RPM operation.

Permanent Mold Cast Construction: Manufactured from permanent mold cast 356 aluminum for excellent strength, durability, and heat dissipation.

Precision CNC Machined: Machined sealing surfaces provide excellent fitment and reliable sealing.

Corrosion-Resistant Finish: Finished in durable black powder coating for long-lasting corrosion protection.

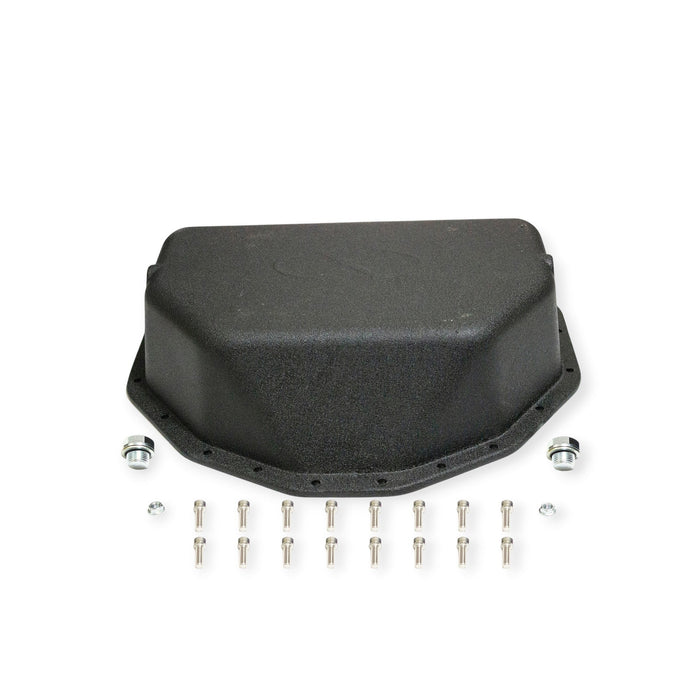

What's Included

  • (1) Xcessive Manufacturing Front Sump Oil Pan

  • Stainless Steel Trap-Door Baffle (Pre-Installed)

  • (2) Drain Plugs

  • Complete Mounting Hardware

Engine Compatibility

  • Toyota 1JZ-GE

  • Toyota 1JZ-GTE

  • Toyota 2JZ-GE

  • Toyota 2JZ-GTE

Compatible Applications

  • Nissan S13

  • Nissan S14

  • Toyota Cressida

  • Mercedes-Benz 190E

  • Other chassis utilizing standard front sump JZ oil pan geometry

Important Notes

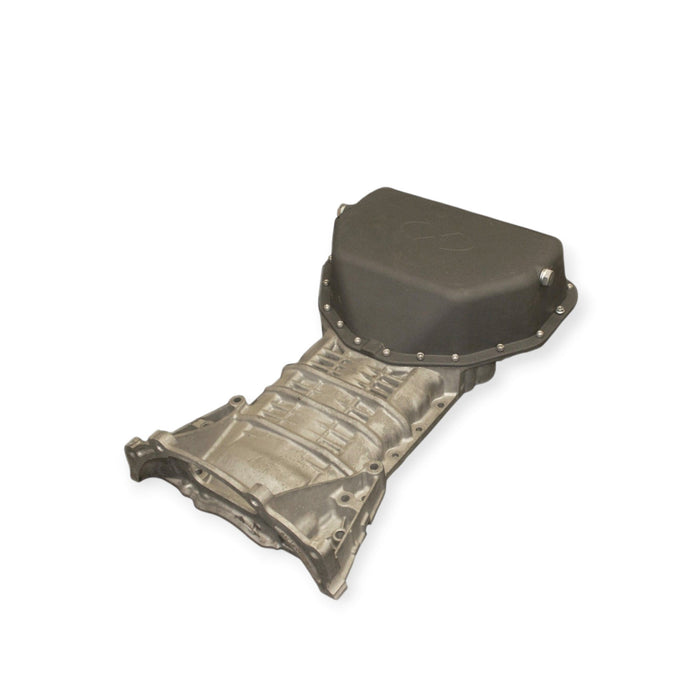

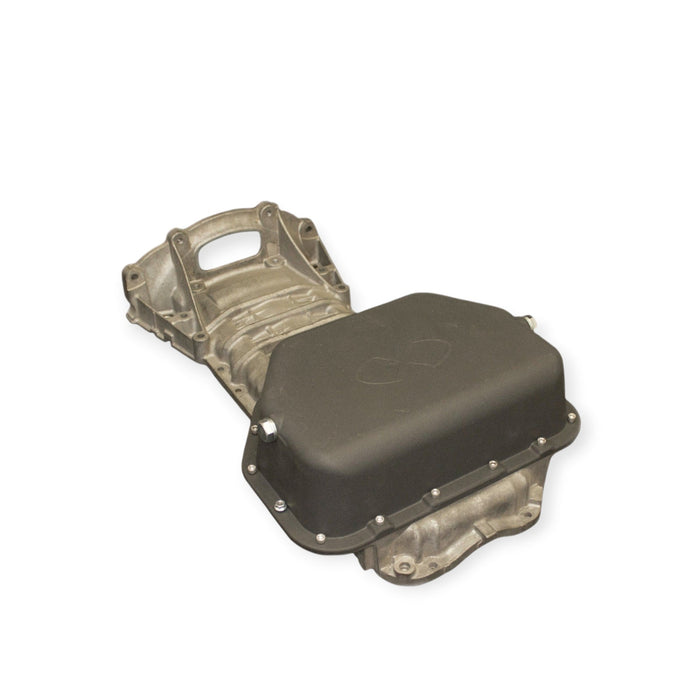

  • Designed to bolt directly to the factory cast JZ upper/mid oil pan.

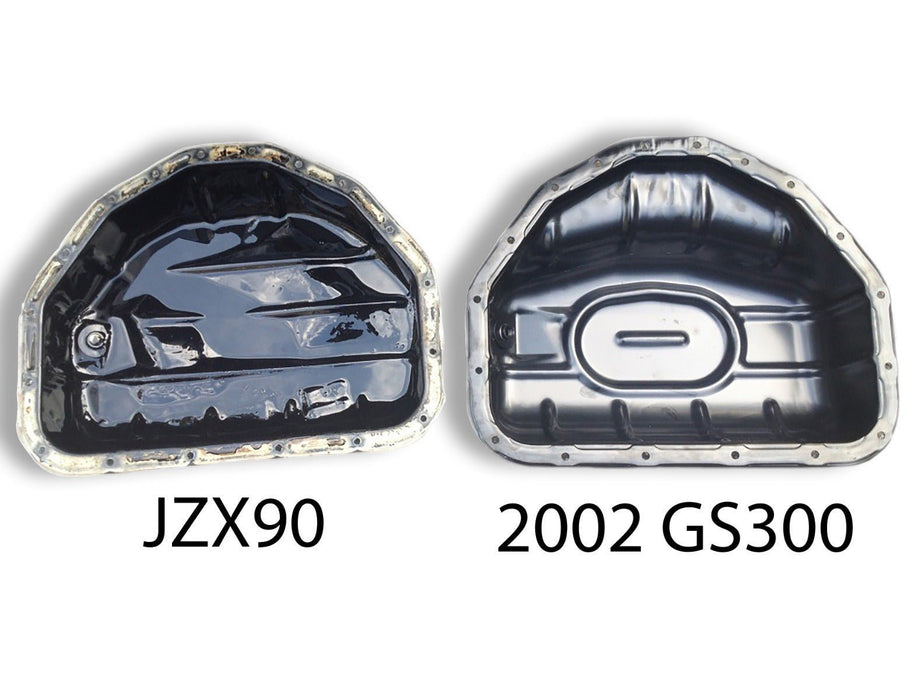

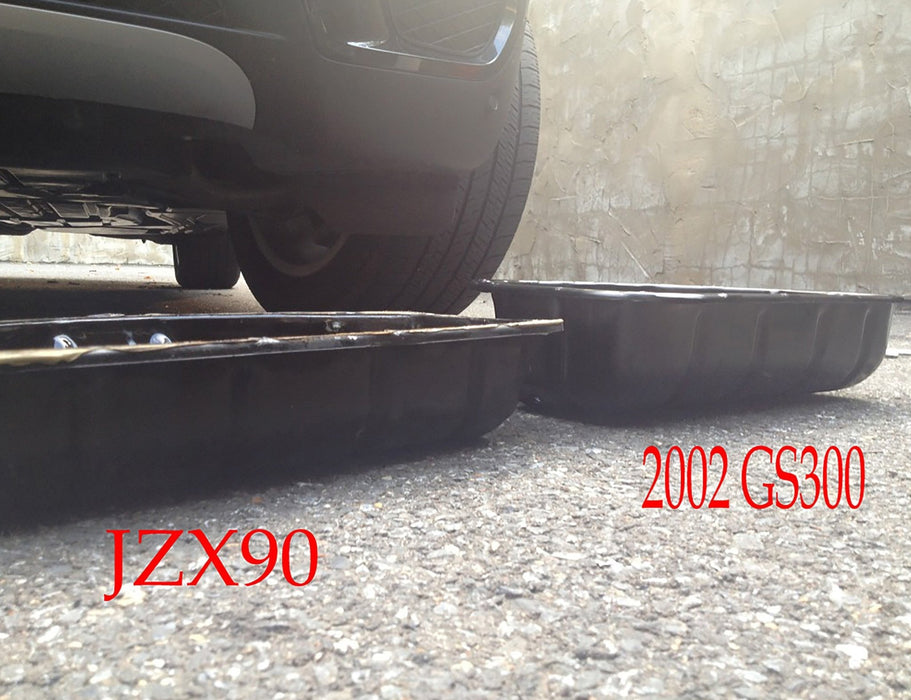

  • Oil pan depth is approximately 4 inches, similar to a GS300 front sump pan and approximately 1 inch deeper than a JZX90 pan.

  • Oil capacity is approximately 7 quarts.

  • Not compatible with chassis requiring a rear-notched oil pan, including applications utilizing the steep rear notch found on certain IS300 and GS300 pans.

  • The rear of the pan features a mild angle and may be modified if additional chassis clearance is required, while still maintaining greater oil capacity than most factory steel pans.

  • Factory oil pickups vary by application. JZX90 pickups are slightly shorter than GS300 pickups. Extending or changing the pickup can maximize the benefits of the deeper sump.

  • Cast aluminum provides excellent heat dissipation but is less impact-resistant than stamped steel. Vehicles with extremely low ride height or those likely to contact the ground should consider additional skid plate protection.

  • Professional installation is recommended.

  • Intended for off-road, racing, and high-performance applications.
