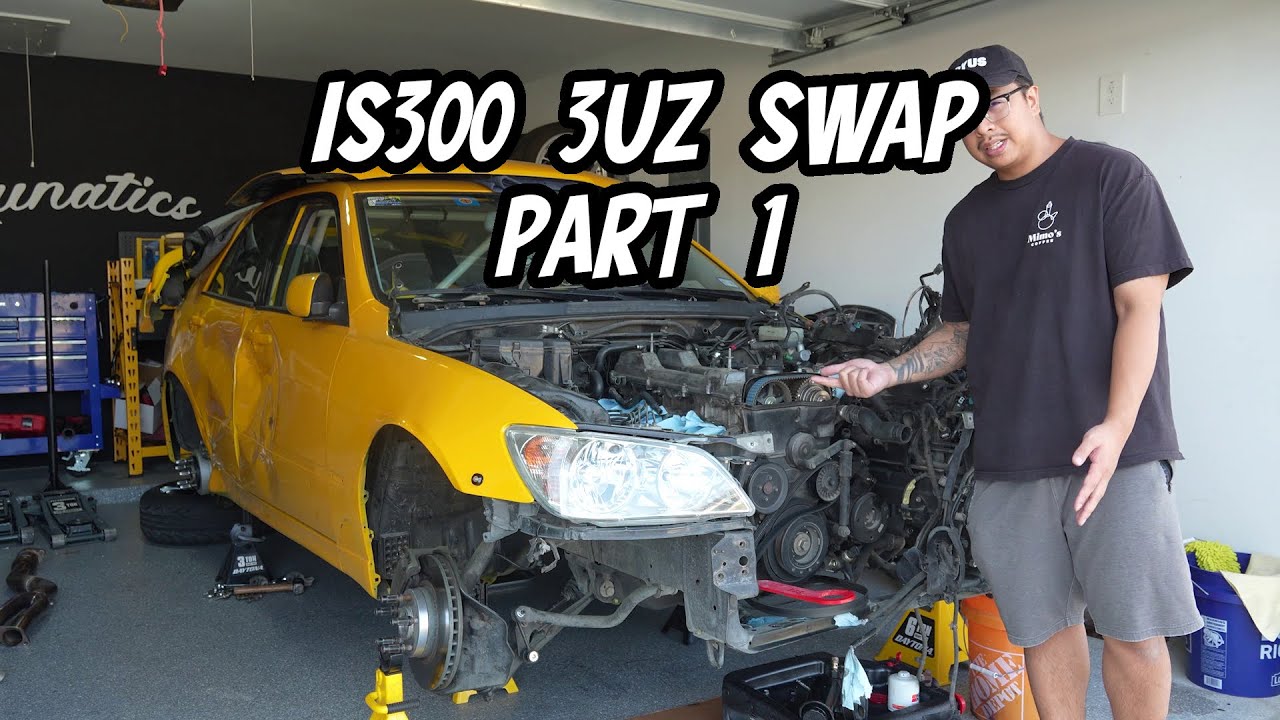

3UZ Swapping Our Lexus IS300 (Build Series Part 1)

The time has officially come. We're starting our Lexus IS300 3UZ-FE V8 swap, marking the beginning of a complete Toyota V8 conversion and a new chapter for our IS300 drift car.

Instead of keeping the factory 2JZ-GE inline-six, we're replacing it with Toyota's naturally aspirated 4.3-liter 3UZ-FE V8. The goal is to build a reliable, responsive, V8-powered Lexus IS300 while keeping the drivetrain within the Toyota and Lexus family.

This project isn't just about horsepower. We're building the car around V8 torque, naturally aspirated throttle response, reliability, and the driving experience of a Toyota V8 in a lightweight, rear-wheel-drive Lexus chassis.

In Part 1 of our Lexus IS300 3UZ swap series, we're beginning the engine bay teardown, removing the front radiator support, disconnecting the factory 2JZ wiring harness, and preparing the chassis for the engine removal and V8 installation that will follow.

Planning your own Lexus engine swap? Browse our Lexus IS300 engine swap parts or explore our complete Lexus IS300 performance parts catalog at Lunatics Co.

Why We're Swapping a 3UZ-FE V8 Into a Lexus IS300

Choosing the right engine is one of the most important decisions in any engine swap.

The first-generation Lexus IS300 is already a great platform for a performance or drift build. It comes with rear-wheel drive, a well-balanced chassis, and the legendary Toyota 2JZ-GE inline-six.

But for this project, we wanted something different.

Instead of building another turbocharged 2JZ IS300, we decided to swap in Toyota's 3UZ-FE V8.

The 3UZ-FE is a 4.3-liter, naturally aspirated V8 with an aluminum engine block and cylinder heads. It was originally used in several Lexus luxury vehicles, including the LS430, GS430, and SC430.

Compared with the factory 2JZ-GE, the 3UZ offers a completely different power delivery and driving experience.

The goal is to take advantage of the V8's naturally aspirated torque and throttle response while building a car that remains reliable and enjoyable to drive.

What Makes the Toyota 3UZ-FE a Good Engine Swap Candidate?

There are several reasons we chose the 3UZ-FE for our IS300 drift build.

4.3-Liter Naturally Aspirated V8

One of the biggest attractions is the engine's displacement.

The 3UZ-FE produces smooth, naturally aspirated power without requiring a turbocharger or supercharger.

For a drift car, having predictable throttle response and usable torque can make the car easier to control through transitions and while maintaining wheel speed.

Aluminum Engine Construction

Unlike the factory iron-block 2JZ-GE, the 3UZ-FE uses an aluminum engine block.

This makes it an interesting engine swap candidate for builders concerned about front-end weight.

However, the finished vehicle's weight distribution depends on the complete drivetrain, engine positioning, accessories, exhaust, and other components.

Toyota and Lexus Reliability

Another reason we chose the 3UZ is its reputation for durability in factory Lexus applications.

Our goal isn't to build the highest-horsepower IS300 possible.

Instead, we want a dependable V8-powered drift car that can handle regular use without constantly needing major engine work.

Of course, reliability still depends on the condition of the donor engine, preventative maintenance, cooling, lubrication, and the quality of the installation.

Keeping the Build Toyota and Lexus Powered

We also wanted to keep the project within the Toyota and Lexus family.

There are plenty of engine swap options available for the IS300, including GM LS engines and other popular V8 platforms.

But using a Toyota 3UZ-FE gives this build a different identity while keeping the engine related to the broader Lexus lineup.

Starting the Lexus IS300 Engine Bay Teardown

Before we can install the 3UZ-FE, the factory engine and surrounding components need to come out.

That means removing the components that prevent us from safely extracting the 2JZ-GE and preparing the engine bay for the larger V8 drivetrain.

We're approaching this project in stages rather than trying to remove everything at once.

The first step is opening up the front of the car and creating enough space to work around the engine.

Removing the Lexus IS300 Radiator Support

One of the first major steps in our Lexus IS300 V8 swap is removing the front radiator support.

Opening up the front of the chassis makes engine removal and future engine installation considerably easier.

With the radiator support out of the way, we gain additional room to maneuver the engine and transmission during removal and installation.

This becomes especially useful when working with an engine hoist and engine leveler.

Instead of trying to lift the entire drivetrain straight up and over the front structure, we can approach the job with more flexibility.

Before removing the front support and surrounding components, we disconnect and move the necessary cooling system components.

These components need to be organized carefully because some may be reused later in the build.

Important Note: The radiator support is part of the vehicle's front structure. Cutting or modifying structural components requires appropriate fabrication, reinforcement, and inspection. Removing a bolt-on component is not equivalent to cutting welded chassis structure.

Removing Factory Components From the IS300 Engine Bay

With the front end opened up, we can begin the engine bay teardown.

The objective is to remove components that will no longer be needed while making room for the 3UZ-FE and its supporting systems.

Depending on the final engine and transmission configuration, this can include factory brackets, unused plumbing, and accessories that interfere with the V8 installation.

Cleaning and simplifying the engine bay now will also make future fabrication and wiring work easier.

There are several reasons we're taking the time to prepare the engine bay before installing the new drivetrain:

  • Additional clearance for the 3UZ-FE V8
  • Easier engine and transmission installation
  • Improved access for wiring and fuel system modifications
  • Better planning for exhaust and steering clearance
  • Improved serviceability after the swap
  • A cleaner finished engine bay

While some of these changes are cosmetic, most are being done to make the final swap easier to maintain and work on.

Removing the Factory Lexus IS300 2JZ Wiring Harness

Wiring is one of the most complicated parts of any modern engine swap.

Because we're replacing the factory 2JZ-GE with a 3UZ-FE V8, we need to determine which factory wiring circuits can be retained and which will need to be modified or replaced.

In Part 1, we begin disconnecting and removing the original engine wiring harness.

That includes identifying the factory connectors, separating the engine harness from the chassis wiring, and making sure we understand which connections will be needed later.

Removing the original harness gives us a better understanding of the factory wiring layout before we begin integrating the 3UZ.

Why Labeling the Wiring Matters

When removing a factory engine harness, it can be tempting to disconnect everything as quickly as possible.

However, taking the time to label connectors and document their original locations can save a considerable amount of time later.

Even if the original engine harness won't be reused, certain chassis circuits may still need to communicate with the new ECU or engine management system.

Depending on the final setup, these may include:

  • Ignition and starter circuits
  • Charging system connections
  • Cooling fan control
  • Instrument cluster signals
  • Fuel pump control
  • Chassis grounds
  • Other factory electrical systems

Proper wiring preparation helps prevent electrical issues when the new engine is installed.

What Wiring Is Needed for a Lexus IS300 3UZ Swap?

A 3UZ-FE engine swap requires a compatible engine management and wiring solution.

The original IS300 ECU and engine harness were designed around the 2JZ-GE, so they cannot simply be connected to the 3UZ without modification.

The final wiring solution depends on the donor engine, ECU, transmission, and other systems being retained.

Some builders use modified factory wiring, while others use custom harnesses or aftermarket engine management.

For our build, we're using this early teardown stage to understand the existing wiring before making final decisions about how everything will be integrated.

Preparing the Lexus IS300 for V8 Engine Fitment

Removing the factory engine is only one part of a successful swap.

Before the 3UZ can be installed, we also need to consider how the engine will physically fit inside the IS300 chassis.

Some of the most important considerations include:

  • Engine mount bracket location
  • Engine height and positioning
  • Steering rack and steering shaft clearance
  • Exhaust manifold clearance
  • Transmission tunnel clearance
  • Oil pan and subframe clearance
  • Driveshaft alignment

These details become particularly important when building a car for drifting.

We want to make sure the engine is positioned correctly without creating unnecessary problems for the steering, suspension, or drivetrain.

Xcessive Manufacturing 1UZ/3UZ Engine Mounts for the IS300

One of the key components for our swap is the engine mounting solution.

Xcessive Manufacturing offers engine mount brackets designed to help install Toyota UZ-series V8 engines into the first-generation Lexus IS300 chassis.

Lunatics Co carries the Xcessive Manufacturing 1UZ/3UZ Engine Mount Brackets for the 2001–2005 Lexus IS300.

These brackets provide a swap-specific mounting solution for positioning the V8 in the chassis.

Engine position matters because even small changes can affect exhaust clearance, transmission alignment, and steering clearance.

We also carry Xcessive Manufacturing UZ Urethane Engine Mounts for the Lexus IS300 for compatible configurations.

Browse our Xcessive Manufacturing parts collection for additional engine swap and drivetrain components.

What Transmission Will We Use for the 3UZ IS300 Swap?

At the beginning of this build, the transmission choice was still undecided.

Choosing a manual transmission for a 3UZ swap involves balancing cost, availability, fitment, and the intended use of the vehicle.

Different transmissions require different adapter systems, clutch configurations, crossmembers, and driveshaft solutions.

We wanted to find a transmission that would work well for drifting without requiring excessive modifications to the IS300 chassis.

As the build progressed, we eventually selected the Toyota TL70 6-speed manual transmission found in the Scion FR-S, Subaru BRZ, and Toyota 86 platform.

We paired it with an Xcessive Manufacturing UZ-to-TL70 adapter system.

For builders interested in a similar conversion, Lunatics Co carries the Xcessive Manufacturing 1UZ/3UZ to TL70 Transmission Adapter Kit.

You can see how we installed the transmission in Part 5 of our Lexus IS300 3UZ swap series.

Why Engine Bay Preparation Matters Before a 3UZ Swap

One of the biggest mistakes during an engine swap is rushing into installation before understanding how all the supporting components will fit.

It's easy to focus on the engine itself, but the supporting systems are what make the swap work reliably.

Wiring, fuel delivery, cooling, steering, exhaust, and transmission fitment all need to be considered before the vehicle can be driven.

By starting with a complete engine bay teardown, we're creating a better foundation for the rest of the build.

This also gives us the opportunity to inspect the chassis, clean hard-to-reach areas, and identify potential problems before installing the V8.

What Parts Do You Need for a Lexus IS300 3UZ Swap?

A Lexus IS300 3UZ-FE swap requires more than just the V8 engine.

Depending on your setup, you'll need a compatible transmission, engine mounts, wiring solution, fuel system components, exhaust modifications, and supporting drivetrain parts.

Some useful components and collections available through Lunatics Co include:

Always confirm fitment for your exact engine, transmission, and chassis configuration before ordering parts.

Lexus IS300 3UZ Swap FAQ

Can you put a 3UZ-FE V8 in a Lexus IS300?

Yes. The Toyota 3UZ-FE 4.3-liter V8 can be installed in the first-generation Lexus IS300 using compatible engine mounts, a transmission solution, wiring, and other supporting modifications.

What engine comes in a Lexus IS300?

The 2001–2005 U.S.-market Lexus IS300 came equipped with the Toyota 2JZ-GE 3.0-liter inline-six engine.

What cars came with the Toyota 3UZ-FE?

The Toyota 3UZ-FE was used in several Lexus models, including the LS430, GS430, and SC430. Applications and production years vary by market.

Is the 3UZ-FE an aluminum engine?

Yes. The 3UZ-FE features an aluminum engine block and aluminum cylinder heads.

Is a 3UZ swap easier than a turbo 2JZ build?

Not necessarily. A naturally aspirated 3UZ eliminates the need for a turbocharger system, but the swap introduces challenges involving engine mounts, transmission compatibility, wiring, exhaust routing, and other supporting systems.

What motor mounts are needed for a 3UZ IS300?

Our build uses Xcessive Manufacturing components. Lunatics Co carries Xcessive 1UZ/3UZ Engine Mount Brackets for the 2001–2005 Lexus IS300.

What transmission can you use with a 3UZ-FE?

The 3UZ-FE can be adapted to various manual transmissions using compatible adapter plates, flywheels, clutches, and mounting components.

For our build, we eventually selected the Toyota TL70 6-speed manual transmission and an Xcessive Manufacturing adapter system.

Do you need to modify the IS300 wiring for a 3UZ swap?

Yes. The factory IS300 engine management and wiring were designed for the 2JZ-GE. Integrating a 3UZ requires a compatible ECU, wiring harness, and connections to the necessary chassis systems.

Where can I buy Lexus IS300 engine swap parts?

Lunatics Co carries a dedicated Lexus IS300 Swap Parts collection with engine, transmission, and drivetrain components for modified IS300 builds.

Lexus IS300 3UZ V8 Swap Build Details

  • Chassis: 2001–2005 Lexus IS300 platform
  • Factory engine: Toyota 2JZ-GE 3.0L inline-six
  • Replacement engine: Toyota 3UZ-FE 4.3L V8
  • Transmission at the start of the build: Undecided
  • Transmission selected later: Toyota TL70 6-speed manual
  • Build purpose: Drift car
  • Current episode: Engine bay teardown and preparation

What's Next for Our Lexus IS300 3UZ Swap?

With the engine bay teardown underway, the next major milestone is removing the factory 2JZ-GE and bringing home the 3UZ-FE V8.

In Part 2, we finish disconnecting the factory drivetrain, remove the 2JZ using an engine hoist, and pick up the 3UZ that will power the build.

We also begin planning the wiring, fuel system, steering, exhaust, and chassis modifications required to make the swap work.

Continue to Part 2: Pulling the 2JZ and Picking Up the 3UZ V8.

The Lexus IS300 V8 swap is officially underway, and this is only the beginning.

Watch the Complete Lexus IS300 3UZ Swap Build Series

Follow the build from the beginning:

We're documenting the entire process, from removing the factory 2JZ to installing the 3UZ-FE V8, converting the car to a manual transmission, and getting the engine running.
