Lexus IS300 3UZ Swap Part 3 Engine Prep Timing Belt Water Pump & Starter - Lunaticsco

Lexus IS300 3UZ Swap Part 3 Engine Prep Timing Belt Water Pump & Starter

Part 3 of our Lexus IS300 3UZ swap build series is where the project transitions from teardown into mechanical preparation. With the factory 2JZ-GE removed and the 3UZ-FE V8 in hand, the focus shifts to properly servicing and preparing the engine before installation.

We're replacing the timing belt, water pump, starter, front main seal, valve cover gaskets, and other maintenance components before installing the 4.3-liter V8 into our Lexus IS300 drift car.

If you missed the earlier episodes, catch up here:

This stage is critical. Every component serviced now is one less potential failure point once the engine is installed.

Planning your own engine swap? Browse our Lexus IS300 engine swap parts and Lexus IS300 performance parts at Lunatics Co.

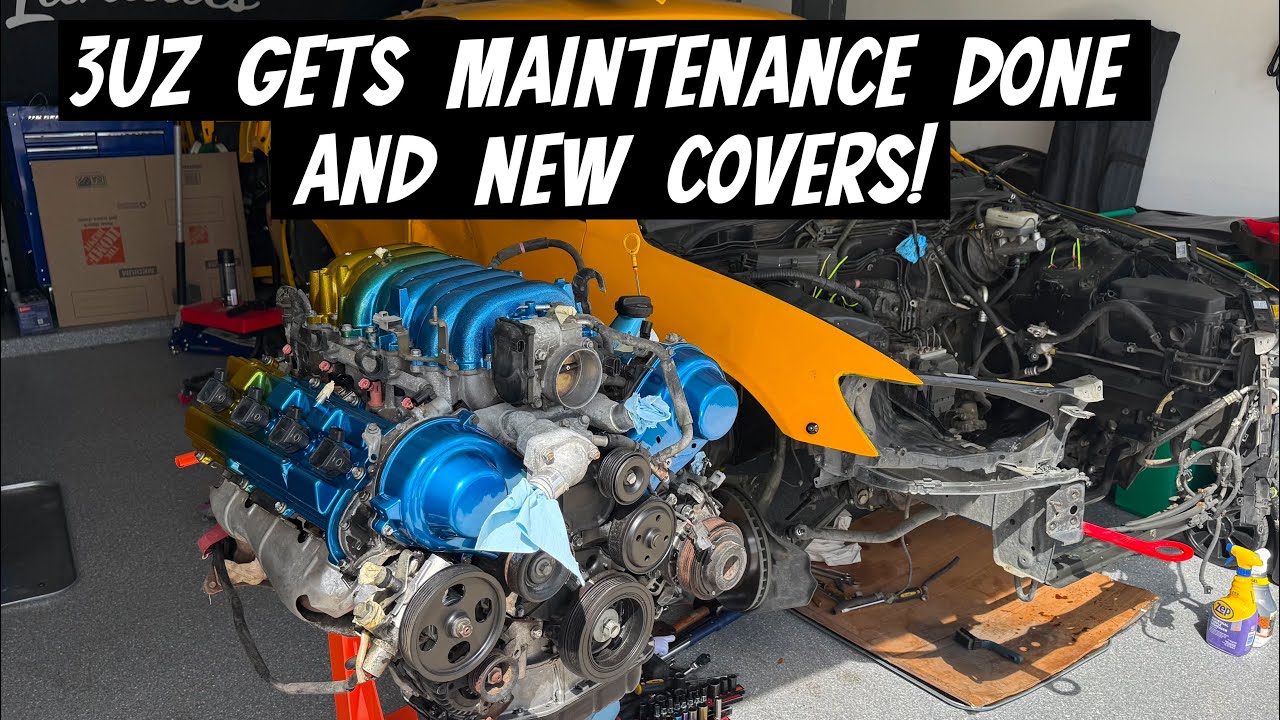

Preparing the 3UZ-FE V8 for Our Lexus IS300 Swap

Before installing a used engine into a project car, it's worth taking the time to inspect its overall condition and address maintenance items that will become difficult to access later.

Our 3UZ-FE came out of a Lexus application and will be replacing the factory 2JZ-GE inline-six in our IS300.

Because this car is being built for drifting, we want to address as many potential maintenance issues as possible before installing the engine.

3UZ-FE Engine Inspection and Service Strategy

Before touching anything, we visually inspected the engine for:

  • Oil leaks around the seals and timing cover
  • Coolant residue indicating possible water pump problems
  • Cracks or wear in rubber components
  • Sludge or varnish under the valve covers

The 3UZ showed encouraging signs of previous maintenance, but the timing belt had visible cracking. That immediately justified a full front-end service.

Our strategy is simple: if a component is difficult to access once the engine is installed, service or replace it now.

3UZ-FE Timing Belt Replacement and Alignment

The Toyota 3UZ-FE uses a timing belt to drive its dual overhead camshaft system. Correct timing alignment is critical because incorrect installation can cause serious engine damage.

With the engine outside the vehicle, replacing the timing belt is much easier than trying to complete the same service after the swap.

Removing the Old 3UZ Timing Belt

We started by removing the timing covers and exposing the timing belt system.

The disassembly process included:

  1. Removing the timing covers while noting sensor wiring and routing
  2. Rotating the crankshaft to the specified timing position
  3. Aligning the timing marks with their factory reference points
  4. Removing the crankshaft pulley bolt using an appropriate holding tool

At this stage, both camshaft gears and the crankshaft timing marks must be aligned precisely.

Even a single tooth of incorrect timing can affect engine performance or potentially cause damage.

Replacing the 3UZ Timing Belt Components

With the old belt removed, we replaced the main timing system components.

  • Timing belt
  • Hydraulic timing belt tensioner
  • Timing belt idler pulleys

The torque specifications recorded for this service were:

  • Timing belt tensioner bolts: 27 Nm (20 ft-lb)
  • Idler pulley bolts: 43 Nm (32 ft-lb)
  • Crankshaft pulley bolt: 294 Nm (217 ft-lb)

After installing the new components, we manually rotated the crankshaft multiple times to verify that the timing marks remained correctly aligned.

Important Note: These torque values are from our original build documentation and have not been independently verified for every 3UZ-FE application. Always confirm the specifications and timing procedure using the factory service manual for your exact engine year.

Replacing the 3UZ-FE Front Main Seal

With the timing components removed, we had access to the front crankshaft seal.

Even if a seal isn't leaking yet, replacing it while the engine is disassembled can save a significant amount of labor later.

Our front main seal replacement involved:

  1. Carefully removing the crankshaft timing gear without damaging the crankshaft
  2. Cleaning the sealing surface and crankshaft snout
  3. Installing the replacement seal evenly to avoid deformation

Improper seal installation can result in oil leaks that require substantial disassembly to repair.

That's why it's important to take your time and ensure the seal is installed to the correct depth.

3UZ-FE Water Pump Replacement and Cooling System Service

The 3UZ-FE water pump is driven by the timing belt, making it a logical component to replace during a timing belt service.

With the front of the engine already disassembled, we decided to replace the water pump rather than risk having to repeat the work later.

Removing and Installing the Water Pump

Our water pump replacement process included:

  1. Removing the old water pump
  2. Cleaning the mating surfaces and removing old gasket material
  3. Installing new O-rings and lightly lubricating them as appropriate
  4. Installing the new water pump and tightening the fasteners evenly

The torque specifications listed in our build notes were:

  • Water pump bolts: 9 Nm (80 in-lb)
  • Thermostat housing bolts: 10 Nm (89 in-lb)

Even minor contamination on the mating surfaces can create coolant leaks, so thorough cleaning is important before installing the new pump.

As with all engine service work, verify torque specifications against the correct factory documentation before installation.

Inspecting and Replacing the 3UZ Accessory Pulleys

While servicing the front of the engine, we also inspected the accessory drive system.

Our inspection included:

  • Removing accessory idler pulleys
  • Checking pulley bearings for noise or excessive play
  • Replacing worn pulleys
  • Confirming correct washer orientation and pulley spacing

Incorrect pulley alignment can cause the accessory belt to track improperly or wear prematurely.

Addressing these components now should help reduce the chances of accessory drive issues after the engine is installed.

Replacing the 3UZ-FE Starter Under the Intake Manifold

One of the most important maintenance items on our 3UZ-FE was the starter.

Unlike many engines with an externally mounted starter, the 3UZ starter sits beneath the intake manifold in the engine valley.

That location makes starter replacement more involved because the intake manifold must be removed for access.

Since the engine was already outside the car, we decided to replace the starter before installing it into the IS300.

3UZ Starter Replacement Process

Our starter replacement involved:

  1. Removing the intake manifold components in the appropriate sequence
  2. Disconnecting the relevant fuel and vacuum lines
  3. Cleaning debris from the engine valley
  4. Disconnecting the starter wiring
  5. Removing the old starter and installing the replacement

The starter bolt torque specification recorded in our original notes was 39 Nm (29 ft-lb).

Always verify the applicable specification for your donor engine before tightening the starter mounting bolts.

The valley beneath the intake manifold can accumulate dirt, leaves, and other debris over time. Cleaning this area before reassembly helps prevent contamination and keeps the engine easier to service.

3UZ-FE Intake Manifold Cleaning and Reassembly

With the intake manifold removed for the starter replacement, we took the opportunity to inspect and refresh the intake components.

Our work included:

  1. Cleaning the throttle body and intake runners
  2. Replacing or repositioning studs and hardware where necessary
  3. Inspecting vacuum ports and seals
  4. Reassembling the upper intake components

The intake manifold bolt torque specification listed in our original notes was 21 Nm (15 ft-lb).

Even tightening and proper sealing are important to prevent vacuum leaks.

Vacuum leaks can create drivability problems, unstable idle, and incorrect air-fuel mixture behavior, making proper intake assembly especially important for an engine swap.

3UZ-FE Valve Cover Gasket Replacement and Engine Inspection

We also removed the valve covers to inspect the condition of the engine's top end and replace the existing seals.

This gave us a better look at how the engine had been maintained before we purchased it.

Inspecting the 3UZ Camshafts and Valve Train

Our visual inspection showed:

  • No visible scoring on the camshafts
  • Minimal varnish buildup
  • No obvious visual signs of oil starvation

These findings were encouraging and suggested the engine had been reasonably well maintained.

However, a visual inspection alone cannot confirm overall engine health. Compression, leak-down, and other diagnostic testing may still be appropriate for a used engine.

Installing New 3UZ Valve Cover Gaskets

With the inspection complete, we replaced the valve cover sealing components.

  1. Removed the old valve cover gaskets
  2. Cleaned the gasket mating surfaces
  3. Installed replacement gaskets and spark plug tube seals
  4. Applied RTV at the required sealing junctions

The valve cover bolt torque specification recorded in our build notes was 8 Nm (69 in-lb).

Overtightening valve cover hardware can damage the covers or sealing surfaces and create oil leaks.

Be sure to confirm the correct tightening sequence and torque specification for your specific 3UZ-FE.

Converting the Lexus IS300 to 3UZ Drive-by-Wire Throttle

Another important part of our 3UZ swap is adapting the throttle system.

Our IS300's original throttle arrangement is not directly compatible with the 3UZ electronic accelerator pedal setup we're using.

To make the combination work, we're adapting the chassis to support the electronic accelerator pedal.

Installing the Electronic Accelerator Pedal

The mechanical conversion included:

  • Removing the existing throttle cable from the firewall
  • Removing the factory pedal assembly
  • Installing an adapter plate
  • Mounting the electronic accelerator pedal

The goal is to position the pedal comfortably while maintaining the correct mechanical travel and electrical operation.

3UZ Drive-by-Wire Wiring and Calibration

Several important details must be addressed when converting to an electronic accelerator pedal:

  • Pedal placement and movement must feel natural
  • Wiring must match the ECU and throttle control system requirements
  • Accelerator pedal signals may require calibration
  • Throttle safety functions and fault handling must operate correctly

Proper electronic throttle operation is essential for engine management and safe drivability.

For a custom engine swap, the electronic throttle system should be fully tested before the vehicle is driven.

3UZ-FE Maintenance Parts and Part Numbers

Here are the component part numbers documented during our 3UZ-FE engine preparation.

Component Part Number
Timing Belt 13568-59095
Hydraulic Tensioner 13540-50030
Water Pump 16100-59275
Front Main Seal 90311-40020
Valve Cover Gasket Set 11213-50040
Starter 28100-50090
Spark Plugs NGK IFR6T11 or Denso SK20R11

Important Note: These part numbers are reproduced from our original build notes and have not been independently verified. Always confirm compatibility using your engine's year, donor vehicle, VIN, and manufacturer catalog. Individual components within a gasket set may also have separate part numbers.

3UZ-FE Engine Preparation Checklist

Before installing the 3UZ into our Lexus IS300, we addressed the following maintenance items:

  • Inspected the engine for visible leaks and wear
  • Replaced the timing belt
  • Replaced the timing belt tensioner and idler pulleys
  • Replaced the front main seal
  • Installed a new water pump
  • Inspected and refreshed accessory pulleys
  • Replaced the starter
  • Cleaned and reassembled the intake manifold
  • Inspected the camshafts and valve train
  • Replaced valve cover gaskets and seals
  • Prepared the electronic throttle pedal conversion

Completing these jobs before the engine goes into the chassis should make future maintenance easier and reduce the likelihood of having to remove major components after installation.

Lexus IS300 3UZ Swap Engine Preparation FAQ

What engine is used in a Lexus IS300 3UZ swap?

A 3UZ swap replaces the factory 2JZ-GE inline-six with Toyota's 4.3-liter 3UZ-FE V8. The 3UZ-FE was used in Lexus vehicles including the LS430, GS430, and SC430.

Should you replace the timing belt before installing a used 3UZ?

If the timing belt's service history is unknown, replacing it before installing the engine is a sensible preventative maintenance step. Our engine's timing belt showed visible cracking, so we replaced it along with the related tensioner and pulleys.

Does the 3UZ-FE have a timing belt or timing chain?

The Toyota 3UZ-FE uses a timing belt. The belt drives the camshafts and also drives the water pump.

Where is the starter located on a 3UZ-FE?

The starter is located beneath the intake manifold in the engine valley. Access requires removing intake components, making starter replacement easier while the engine is outside the vehicle.

Should you replace the water pump during a 3UZ timing belt service?

Replacing the water pump during timing belt service is a common preventative maintenance approach because the water pump is driven by the timing belt and shares much of the same disassembly work.

What maintenance should be done before a 3UZ swap?

Common maintenance considerations include the timing belt, tensioner, idler pulleys, water pump, front and rear main seals, valve cover gaskets, spark plugs, starter, and cooling system components. The exact work depends on the engine's condition and maintenance history.

Does a 3UZ swap require drive-by-wire conversion?

The 3UZ-FE uses an electronic throttle system. Depending on the donor engine, ECU, and chassis wiring configuration, the swap may require an electronic accelerator pedal and compatible wiring or engine management.

Where can I buy Lexus IS300 engine swap parts?

Lunatics Co carries a dedicated Lexus IS300 Swap Parts collection with engine mounting, drivetrain, and other performance components for modified IS300 builds.

Final 3UZ-FE Engine Preparation Status

At this stage of the build, our 3UZ-FE has been:

  • Serviced on the front end
  • Cleaned and refreshed externally
  • Updated with replacement seals and gaskets
  • Prepared for the next phase of installation

There are still a few items to finish before the engine is fully ready for use:

  • Rear main seal replacement
  • Oil pan resealing
  • Spark plug installation
  • Final vacuum and coolant routing

With the major maintenance completed, we're getting closer to installing the V8 into our Lexus IS300.

What's Next for Our Lexus IS300 3UZ Swap?

With the 3UZ-FE serviced and prepared, the next stage is getting the chassis ready to accept the V8.

In Part 4, we focus on engine bay preparation, including removing unused ABS components, preparing for electric power steering, repainting the engine bay, modifying exhaust clearance, installing Xcessive Manufacturing engine mount brackets, and adapting the fuel system.

Watch the next episode here: Lexus IS300 3UZ Swap Part 4: Engine Bay Preparation and Engine Mounts.

After that, we'll move on to installing the TL70 6-speed manual transmission and getting the engine into the car.

Watch the Complete Lexus IS300 3UZ Swap Series

Follow the build from the beginning:

Watch the full video series on YouTube:
